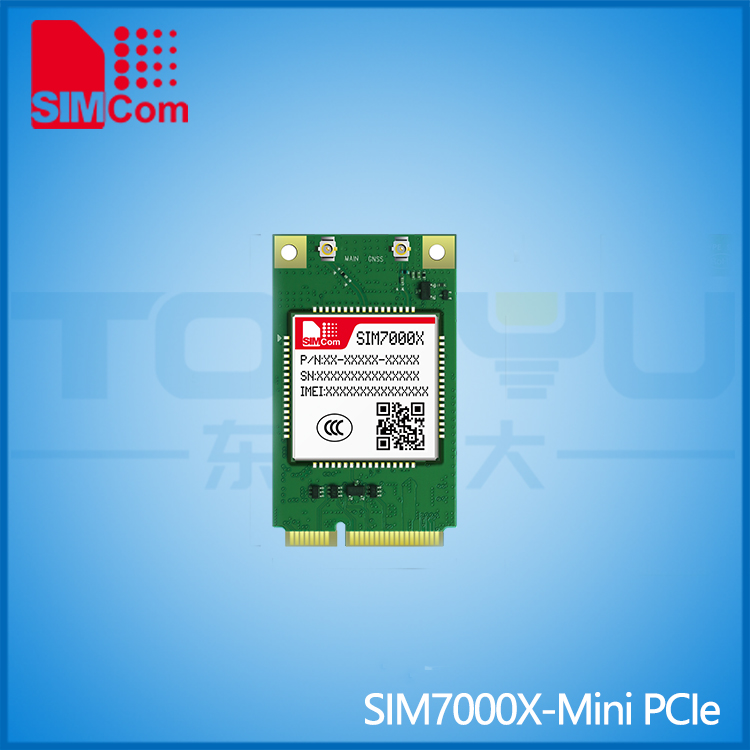

芯訊通 LPWA模組 SIM7000X-Mini PCIe

品　牌芯訊通（SIMCom）

類　別(bie) eMTC&NB-IoT&GSM

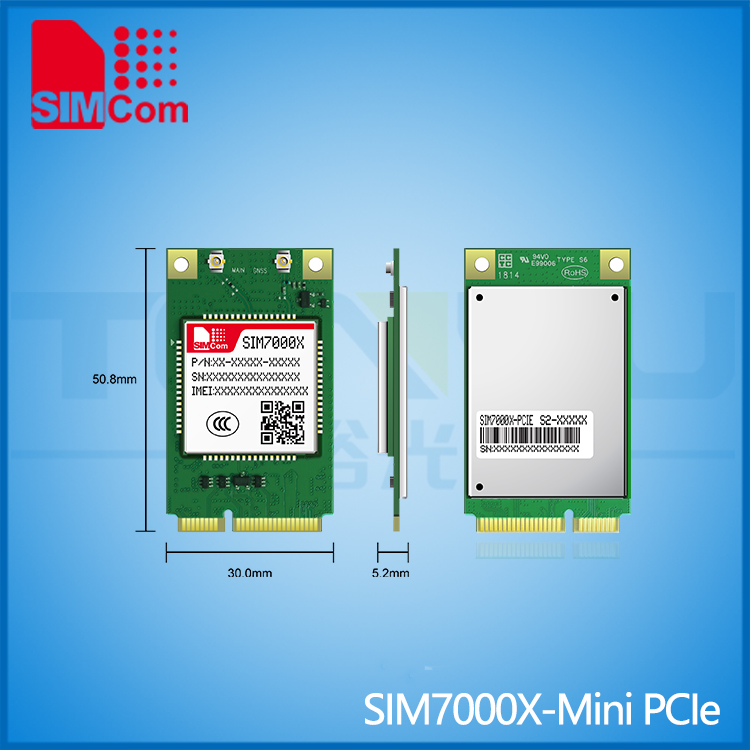

尺　寸 50.8 X 30.0 X 5.2mm

描　述 SIM7000X-PCIE是(shi)LTE-FDD、TDD-LTE和(he)(he)四頻GPRS/EDGE模塊(kuai)解(jie)決方案(an)，支(zhi)持(chi)LTECAT-M1 (eMTC) 和(he)(he)NB-LoT高達375kbps的數據傳(chuan)輸。具(ju)有很(hen)強的擴展能力，具(ju)有豐(feng)富(fu)的接(jie)口，包括UART、USB2.0該模塊(kuai)為客(ke)戶的應用提供(gong)了很(hen)大的靈活性(xing)和(he)(he)易于(yu)集成性(xing)。

18038161549

樣品申請

資源(yuan)下載(zai)

產品(pin)詳情

產品(pin)優勢

With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SIM7000XPCIE series can extend battery life to 10 yearsSIM7000X-PCIE series provides deeper coverage enhancement compared to GSM

The form factor and AT commands of the SIM7000X-PCIE series are compatible with SIM900 and SIM800F

產品(pin)詳(xiang)情

Product		SIM7000G-PCIE	SIM7000E-PCIE	SIM7000A-PCIE	SIM7000JC-PCIE	SIM7000C-PCIE
Form factor		PCIE, 52PIN	PCIE, 52PIN	PCIE, 52PIN	PCIE, 52PIN	PCIE, 52PIN
Dimensions(mm)		50.8 X 30.0 X 5.2mm	50.8 X 30.0 X 5.2mm	50.8 X 30.0 X 5.2mm	50.8 X 30.0 X 5.2mm	50.8 X 30.0 X 5.2mm
Frequency Bands	Cat-M	B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B26/B28/B39	B3/B5/B8/B20/B28	B2/B4/B12/B13	B1/B3/B5/B8/B18/B19/B26	B1/B3/B5/B8
	Cat-NB	B1/B2/B3/B5/B8/B12/B13/B17/ B18/B19/B20/B26/B28	B3/B5/B8/B20/B28	B2/B4/B12/B13	B1/B3/B5/B8/B18/B19/B26	B1/B3/B5/B8
	GSM	850/900/1800/1900MHz	900/1800MHz			900/1800MHz
GNSS		o	o	o	o	o
Temperature		-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃
Electrical Features
Supply Voltage Range(V)		3.3~ 4.3	3.3~ 4.3	3.3~ 4.3	3.3~ 4.3	3.3~ 4.3
Power Consumption	Power Off(uA)	7	7	7	7	7
	Sleep(mA)	2	2	2	2	2
	Idle(mA)	15	15	15	15	15
Data Transfer
Cat-M(Kbps)		300(DL)/375(UL)	300(DL)/375(UL)	300(DL)/375(UL)	300(DL)/375(UL)	300(DL)/375(UL)
Cat-NB(Kbps)		34(DL)/66(UL)	34(DL)/66(UL)	34(DL)/66(UL)	34(DL)/66(UL)	34(DL)/66(UL)
EGPRS(Kbps)		85.6(DL)/85.6(UL)	85.6(DL)/85.6(UL)			85.6(DL)/85.6(UL)
Software Features
Protocol		TCP/UDP/LWM2M/COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP	TCP/UDP/LWM2M/COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP	TCP/UDP/LWM2M/ COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP	TCP/UDP/LWM2M/ COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP	TCP/UDP/LWM2M/COAP/ MQTT/FTP/ HTTP/TLS/DTLS/NTP
FOTA		●	●	●	●	●
Embedded AT		●	●	●	●	●
Firmware Upgrade		USB	USB	USB	USB	USB
Interfaces
SIM Card		1.8V	1.8V	1.8V	1.8V	1.8V
UART		One full modem UART	One full modem UART	One full modem UART	One full modem UART	One full modem UART
USB		USB2.0	USB2.0	USB2.0	USB2.0	USB2.0
PCM		One PCM interface	One PCM interface	One PCM interface	One PCM interface	One PCM interface
I2C		One I2C interface	One I2C interface	One I2C interface	One I2C interface	One I2C interface
Certification
Regulatory		RoHS/REACH/CCC/RCM/ CE(RED)/GCF/FCC/IC /OCD(Anatel)	RoHS/REACH/KC*/ RCM/CE(RED)/GCF	RoHS/REACH/GCF/ FCC/PTCRB/IC	RoHS/REACH/ JATE/Telec	RoHS/REACH/ CCC/NAL/SRRC
Carrier		Deutsche Telekom	KT/LGU/IMDA/TELSTRA /SPARK/Deutsche Telekom/Vodafone*	AT&T/Verizon	Docomo/KDDI	Mobile/Unicom/Telecom
