產品中心

PRODUCT CENTER

1/2

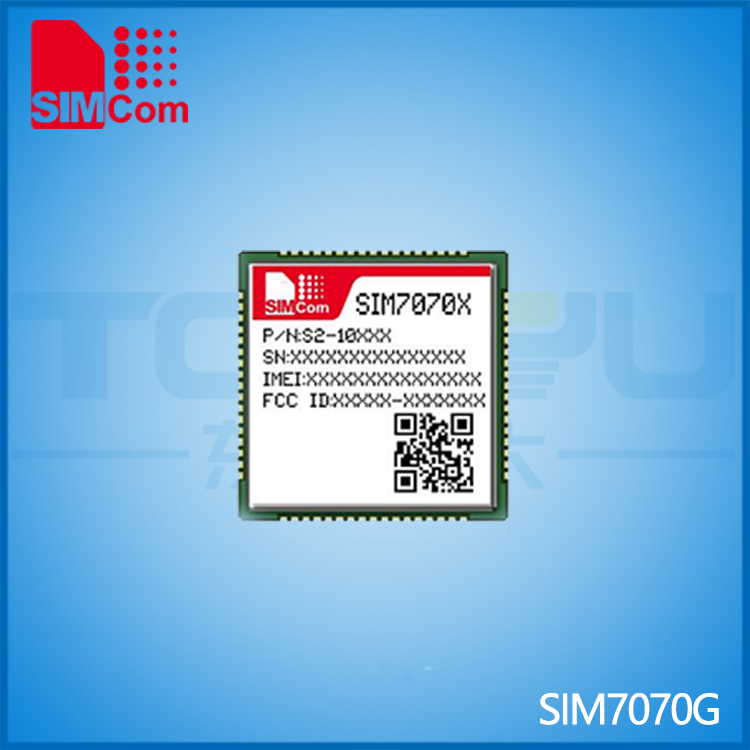

芯訊通 LPWA模組 SIM7070G

品　牌芯訊(xun)通（SIMCom）

類　別(bie) eMTC&NB-IoT&GSM

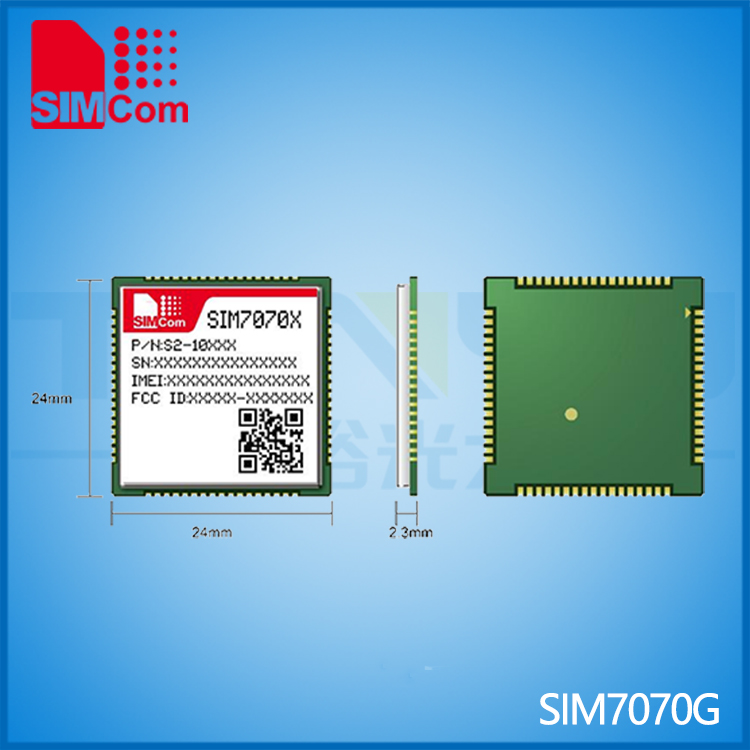

尺　寸(cun) 24*24*2.3

描　述 SIM7070系列(lie)是支(zhi)持Cat-M/Cat-NB/GPRS/EDGE等(deng)無線通信模(mo)式的(de)LPWA模(mo)塊。 SIM7070系列(lie)采用LCC外形(xing)，具(ju)有24mm*24mm的(de)緊(jin)湊(cou)尺寸，非常適合緊(jin)湊(cou)型產品設計。

18038161549

樣品申請

資源下載

產品詳情

產品優勢

通過省電模(mo)式(PSM)和擴展非連續接收(shou) (eDRX)SIM7070系列可延長電池使用(yong)壽(shou)命長達10年與(yu)GSM相(xiang)比，

SIM7070系列提供更深入的覆蓋增強

SIM7070系(xi)列的外(wai)形尺(chi)寸和(he)AT命(ming)令與SIM7000X/SIM800F和(he)SIM900

產品詳情

Product		SIM7070G	SIM7070G-MN	SIM7070G-M	SIM7070G-HP
Form factor		LCC, 68PIN	LCC, 68PIN	LCC, 68PIN	LCC, 68PIN
Dimensions(mm)		24242.3	24242.3	24242.3	24242.3
Frequency Bands	Cat-M	B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85	B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85	B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85	B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85*
	Cat-NB	B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/ B66/B71/B85	B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/ B66/B71/B85		B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/ B66/B71/85
	GSM	850/900/1800/1900MHz
LTE RF Power Class		Class 5 (Typ. 21dbm)	Class 5 (Typ. 21dbm)	Class 5 (Typ. 21dbm)	Class 3 (Typ. 23dbm)
GNSS		o	o	o	o
Temperature		-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃
Electrical Features
Supply Voltage Range(V)		3.0~ 4.6	3.0~ 4.6	3.0~ 4.6	3.0~ 4.5
Power Consumption	@PSM(uA)	3.2	3.2	3.2	4
	@Sleep(mA)	0.8	0.8	0.8	0.8
	@Idle(mA)	10	10	10	10
Data Transfer
Cat-M(Kbps)		589(DL)/1119(UL)	589(DL)/1119(UL)	589(DL)/1119(UL)	589(DL)/1119(UL)
Cat-NB(Kbps)		127(DL)/158.5(UL)	127(DL)/158.5(UL)		127(DL)/158.5(UL)
EGPRS(Kbps)		296(DL)/236.8(UL)
Software Features
Protocol		TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT	TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT	TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT	TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT
FOTA		●	●	●	●
Embedded AT		●	●	●	●
Firmware Upgrade		USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA
Interfaces
SIM Card		1.8V	1.8V	1.8V	1.8V
UART		●	●	●	●
USB		●	●	●	●
PCM/I2S		●	●	●	●
ADC		●	●	●	●
SPI		●	●	●	●
I2C		●	●	●	●
Embedded SIM		o	o	o	o
Certification
Regulatory		RoHS\REACH\JATE\Telec\RCM\CE(RED)\GCF\Orange\TIM\Deutsche Telekom\Telefonica\Vodafone\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC	RoHS\REACH\JATE\Telec\RCM\CE(RED)\GCF\Orange\TIM\Deutsche Telekom\Telefonica\Vodafone\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC	RoHS\REACH\JATE\Telec\RCM\CE(RED)\GCF\Orange\TIM\Deutsche Telekom\Telefonica\Vodafone\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC	RoHS\REACH\JATE\Telec\RCM\CE(RED)\GCF\Orange\TIM\Deutsche Telekom\Telefonica\Vodafone\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC
Carrier		AT&T/VERIZON/ TMOBILE-US/SPRINT/ ROGERS/TELSTRA/VDF/ SoftBank/DoCoMo/KDDI/	AT&T/VERIZON/ TMOBILE-US/SPRINT/ ROGERS/TELSTRA/VDF/ SoftBank/DoCoMo/KDDI/	AT&T/VERIZON/ TMOBILE-US/SPRINT/ ROGERS/TELSTRA/VDF/ SoftBank/DoCoMo/KDDI/
