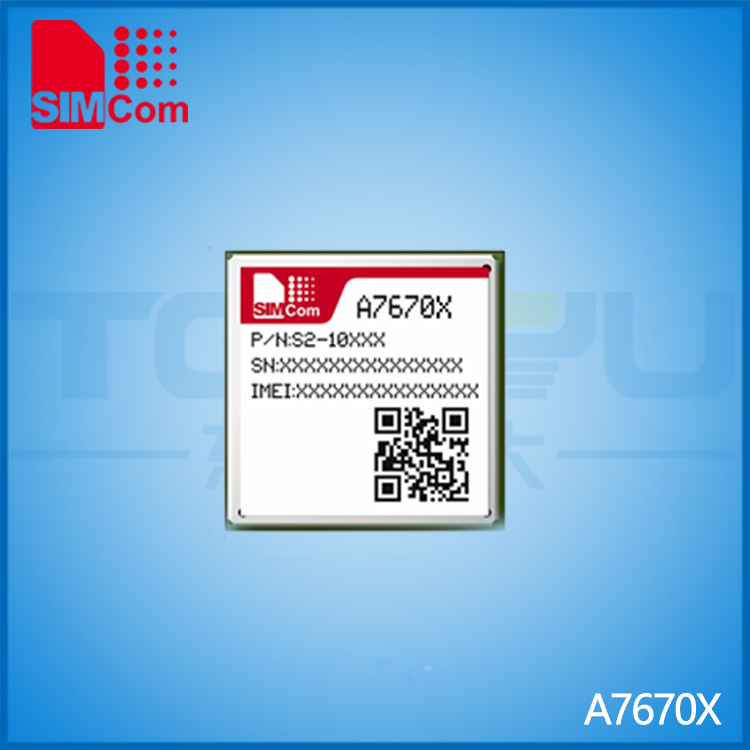

芯訊通 LTE模組 A7670X

品　牌(pai) 芯(xin)訊通(tong)（SIMCom）

類　別(bie) LTE Cat1

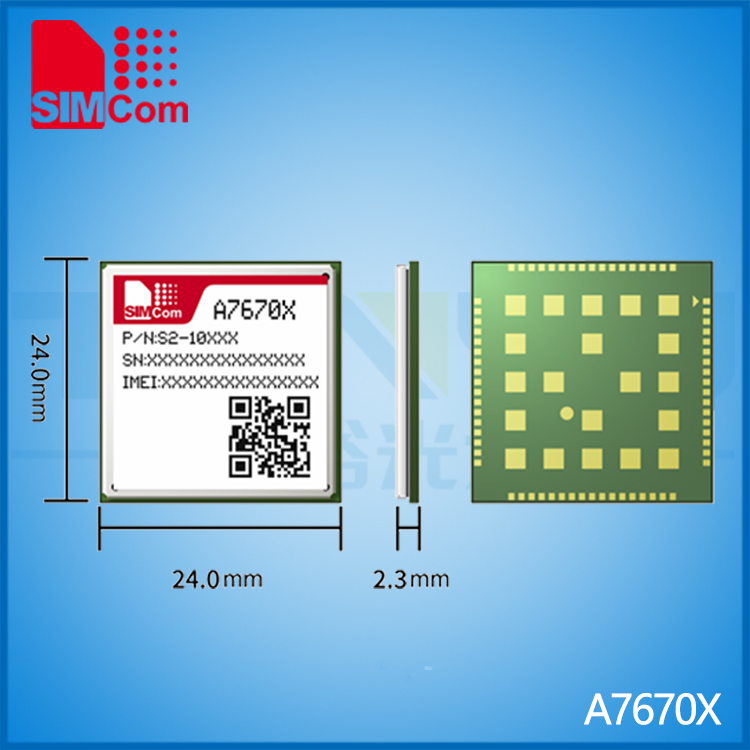

尺　寸(cun) 24.0*24.0*2.3

描　述 A7670系列支持多種內(nei)置網(wang)絡協議，支持主操作驅動程(cheng)序系統(WindowsLinux和Android等(deng)(deng)的USB驅動程(cheng)序)軟件功(gong)能方面，AT指令與(yu)SIM7500/SIM7600系列模塊兼容。同時A7670系列集成了主要工(gong)(gong)業標準接口，具有(you)強大(da)的擴展性，包括(kuo)豐富的UART、USB、12C、GPIO等(deng)(deng)接口，適用于車聯(lian)網(wang)、監(jian)控設備、POS、工(gong)(gong)業路由器、遠程(cheng)診斷(duan)等(deng)(deng)主要物聯(lian)網(wang)應用。

18038161549

樣品申請

資(zi)源下載(zai)

產品詳(xiang)情(qing)

產品優勢

-小型LTECat1模塊

-LGA外(wai)形(xing)規格與(yu)豐富的接口

-適用于LTE和GSM網絡

-豐富的軟件(jian)功能:FOTALBSSSL

-A7670系列的外形與SIM7000/SIM7070系列兼容

產(chan)品詳情

Product		A7670C	A7670E	A7670SA
Form factor		LGA	LGA	LGA
Dimensions(mm)		24.024.02.3	24.024.02.3	24.024.02.3
Frequency Bands	LTE-FDD	B1/B3/B5/B8	B1/B3/B5/B7/B8/B20	B1/B2/B3/B4/B5/B7/B8/B28/B66
	LTE-TDD	B34/B38/B39/B40/B41
	GSM	900/1800MHz	900/1800MHz	850/900/1800/1900MHz
Temperature GNSS		-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃
Electrical Features
Supply Voltage Range(V)		3.4~ 4.2	3.4~ 4.2	3.4~ 4.2
Power Consumption (mA)	LTE	3.8	3.8	3.8
Power Consumption (mA)	GSM,BS_PA_ MFRMS=2	3.5	3.5	3.5
Data Transfer
LTE(Mbps)		10(DL)/5(UL)	10(DL)/5(UL)	10(DL)/5(UL)
GPRS/EDGE(Kbps)		236.8(DL)/236.8(UL)	236.8(DL)/236.8(UL)	236.8(DL)/236.8(UL)
Software Features
Protocol		TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS	TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS	TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS
TLS		●	●	●
File System		●	●	●
Audio Record/Play		o	o	o
TTS		o	o	o
LBS		●	●	●
FOTA		●	●	●
Android RIL		Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/7.0/8.0/9.0
USB Driver		Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android
WWAN (RNDIS)		●	●	●
ECM		●	●	●
Embedded AT		o	o	o
Firmware Upgrade		USB/FOTA	USB/FOTA	USB/FOTA
Interfaces
SIM Card		1.8V/3.0V	1.8V/3.0V	1.8V/3.0V
UART		●	●	●
USB		●	●	●
PCM		o	o	o
ADC		●	●	●
GPIO		●	●	●
I2C		●	●	●
Certification
Certification		RoHS\REACH\CCC\CTA\SRRC\Mobile\Unicom\Telecom	RoHS\REACH\CE(RED)	RoHS\REACH\RCM\CE(RED)\OCD(Anatel)\FCC
