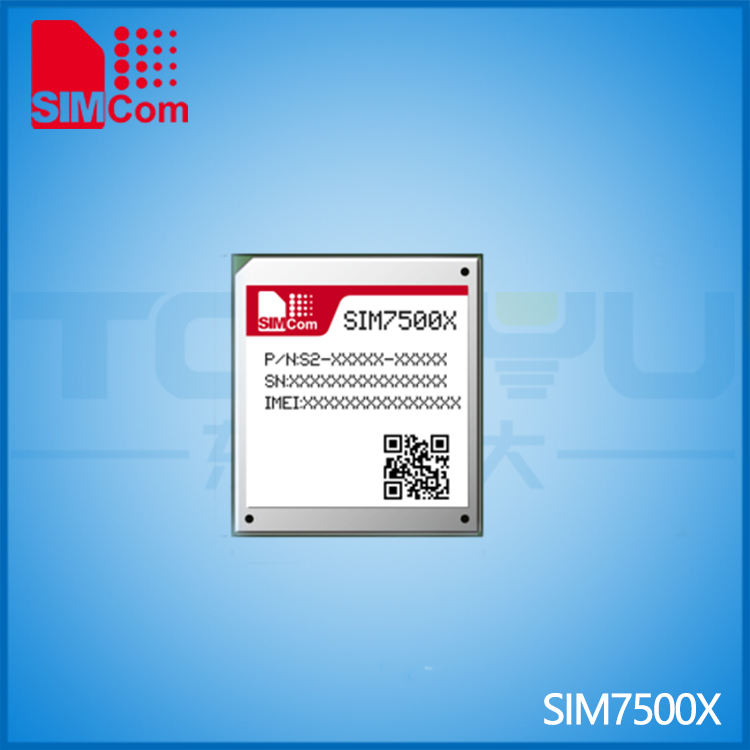

芯訊通 LTE模組 SIM7500X

品　牌芯訊通（SIMCom）

類　別 LTE Cat1

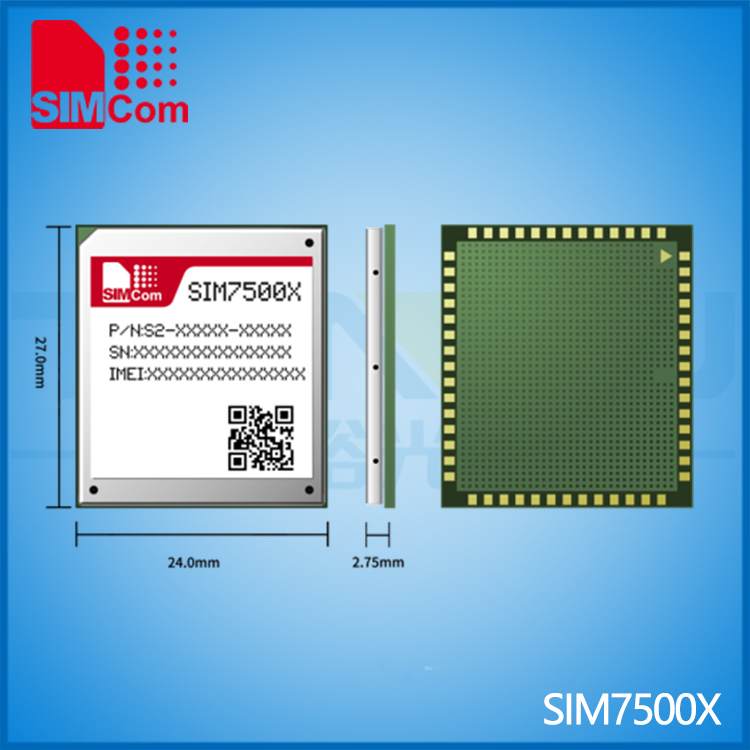

尺　寸 24.0*27.0*2.75

描　述(shu) SIM7500系(xi)列集成(cheng)多(duo)個(ge)衛星高(gao)精度定(ding)位(wei)GNSS系(xi)統(tong)(tong)，內置多(duo)種(zhong)網(wang)(wang)絡協議支持(chi)主要(yao)操(cao)作系(xi)統(tong)(tong)驅(qu)動(dong)(Windows、Linux、Android等USB驅(qu)動(dong))和軟件功能(neng)，AT命(ming)令均與(yu)SIM7600/SIM7600-H系(xi)列模塊兼(jian)容。同時SIM7500系(xi)列集成(cheng)了主流工(gong)業標準接(jie)口(kou)，具有(you)強大的(de)擴展性，包括豐富的(de)UART、USB、12C、GPIO等接(jie)口(kou)，適用(yong)于(yu)車聯(lian)網(wang)(wang)、監(jian)控設備、CPE工(gong)業路由器、遠程診(zhen)斷等主要(yao)物聯(lian)網(wang)(wang)應用(yong)

18038161549

樣品申請

資源下載

產品詳情

產品優勢(shi)

LGA外(wai)形(xing)尺寸和(he)豐富的(de)接口(kou)

多(duo)星座全球導航(hang)衛(wei)星系統接(jie)收機支(zhi)持

適用(yong)于覆蓋全球的LTE、UMTS和GSM網(wang)絡

豐富(fu)的軟件(jian)功(gong)能(neng):FOTALBSTLSVOLTE

SIM7500系(xi)列的AT命令與SIM7600/SIM7600-H系(xi)列模塊(kuai)兼容(rong)

產品詳情

Product		SIM7500A	SIM7500AD	SIM7500V	SIM7500SA	SIM7500E	SIM7500JC	SIM7500JE
Form Factor		LGA, 56PIN	LGA, 56PIN	LGA, 56PIN	LGA, 56PIN	LGA, 56PIN	LGA, 56PIN	LGA, 56PIN
Dimensions(mm)		24.027.02.75	24.027.02.75	24.027.02.75	24.027.02.75	24.027.02.75	24.027.02.75	24.027.02.75
Frequency Bands	LTE-FDD	B2/B4/B12	B2/B4/B12	B4/B13	B1/B3/B5/B7/B8/B28	B1/B3/B7/B8/B20	B1/B18/B19/B26	B1/B3/B8
	WCDMA	B2/B5	B2/B5		B1/B5	B1/B8
	GSM					900/1800MHz
Temperature GNSS		-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional
Electrical Features
Supply Voltage(V)		3.4~ 4.2	3.4~ 4.2	3.4~ 4.2	3.4~ 4.2	3.4~ 4.2	3.4~ 4.2	3.4~ 4.2
Power Consumption(mA)	LTE	1.6	1.6	1.6	1.6	1.6	1.6	1.6
	WCDMA, DRX=9	3.3	3.3	3.3	3.3	3.3
	GSM, BS_PA_ MFRMS=2					2.8
Data Transfer
LTE(Mbps)		10(DL)/5(UL)	10(DL)/5(UL)	10(DL)/5(UL)	10(DL)/5(UL)	10(DL)/5(UL)	10(DL)/5(UL)	10(DL)/5(UL)
HSPA+(Mbps)		42(DL)/5.76(UL)	42(DL)/5.76(UL)		42(DL)/5.76(UL)	42(DL)/5.76(UL)
WCDMA(Kbps)		384(DL)/384(UL)	384(DL)/384(UL)		384(DL)/384(UL)	384(DL)/384(UL)
GPRS/EDGE(Kbps)						236.8(DL)/236.8(UL)
Software Features
Protocol		TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/ FTPS/HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/ FTPS/HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS
TLS		●	●	●	●	●	●	●
File System		●	●	●	●	●	●	●
Audio Record/Play		o		o	o	o	o	o
TTS		o		o	o	o	o	o
DTMF		o		o	o	o	o	o
LBS		●	●	●	●	●	●	●
FOTA		●	●	●	●	●	●	●
Jamming Detection		●	●	●	●	●	●	●
Android RIL		Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0
USB Driver		Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android
WWAN (RNDIS)		●	●	●	●	●	●	●
ECM		●	●	●	●	●	●	●
MBIM		Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10
NDIS		Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10
Firmware Upgrade		USB/FOTA	USB/FOTA	USB/FOTA	USB	USB/FOTA	USB/FOTA	USB/FOTA
Interfaces
SIM Card		1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V
UART		●	●	●	●	●	●	●
USB		●	●	●	●	●	●	●
PCM		o		o	o	o	o	o
ADC		●	●	●	●	●	●	●
I2C		●	●	●	●	●	●	●
Diversity Receiver		●	●	●	●	●	●	●
Certification
Regulatory		RoHS\REACH\FCC\PTCRB\AT&T\IC	RoHS\REACH\PTCRB	RoHS\REACH\GCF\FCC	RoHS\REACH\SRRC\CE(RED)	RoHS\REACH\RCM\CE(RED)	RoHS\REACH\JATE\Telec	RoHS\REACH\JATE\Telec
Carrier		AT&T/Rogers*	T-Mobile\US Cellular	Verizon	Deutsche Telekom	Deutsche Telekom\Telstra	Docomo\KDDI	Softbank
