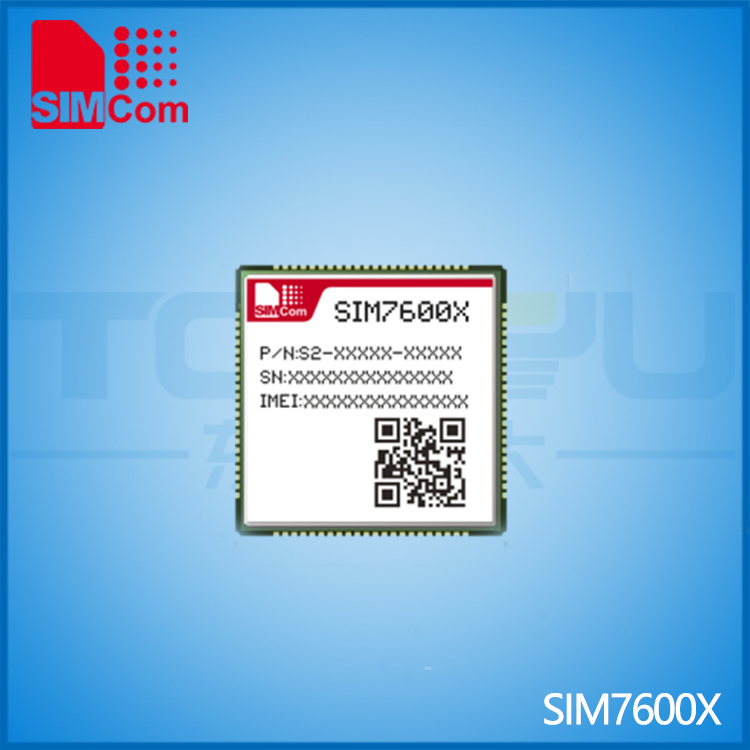

芯訊通 LTE模組 SIM7600X

品　牌芯訊通（SIMCom）

類　別 LTE Cat1

尺　寸 30.0*30.0*2.9

描　述 SIM7600系列(lie)(lie)采用LCC1外形(xing)規(gui)格，兼(jian)容(rong)SIM5320/SIM5360系列(lie)(lie)(UMTS/HSPA+模塊(kuai))和SIM7600/SIM7600-H系列(lie)(lie)(LTE模塊(kuai)) ，從(cong)而實(shi)現了從(cong)3G產品(pin)到LTE產品(pin)的平滑遷移，并(bing)極大地促進了針對客戶(hu)需求的更(geng)具兼(jian)容(rong)性(xing)的產品(pin)設計。

18038161549

樣品申請

資源(yuan)下載

產(chan)品(pin)詳情

產品優勢(shi)

具有豐富接口的LCC1外形規(gui)格

適用于覆蓋全球(qiu)的LTE、UMTS和GSM網絡

豐富的(de)軟件功(gong)能:FOTALBSTLSVOLTE

多星(xing)座全球(qiu)導航衛(wei)星(xing)系(xi)統接(jie)收機支(zhi)持

SIM7600系列(lie)的AT命令與SIM7500/SIM7600-H系列(lie)模(mo)塊(kuai)兼(jian)容

產品詳情

Product		SIM7600A	SIM7600SA	SIM7600E
Form Factor		LCC, 87PIN	LCC, 87PIN	LCC, 87PIN
Dimensions(mm)		30.030.02.9	30.030.02.9	30.030.02.9
Frequency Bands	LTE-FDD	B2/B4/B12	B1/B2/B3/B4/B5/B7/B8/B28/B66	B1/B3/B5/B7/B8/B20
	LTE-TDD		B40	B38/B40/B41
	WCDMA	B2/B5	B1/B2/B5/B8	B1/B5/B8
	GSM		850/900/1800/1900MHz	900/1800MHz
GNSS		o	o	o
Temperature		-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃
Electrical Features
Supply Voltage(V)		3.4~ 4.2	3.4~ 4.2	3.4~ 4.2
Power Consumption (mA)	LTE	2.3	2.3	2.3
	WCDMA, DRX=9	3.3	3.3	3.3
	GSM, BS_PA_ MFRMS=2	2.8	2.8	2.8
Data Transfer
LTE(Mbps)		10(DL)/5(UL)	10(DL)/5(UL)	10(DL)/5(UL)
HSPA+(Mbps)		42(DL)/5.76(UL)	42(DL)/5.76(UL)	42(DL)/5.76(UL)
WCDMA(Kbps)		384(DL)/384(UL)	384(DL)/384(UL)	384(DL)/384(UL)
GPRS/EDGE(Kbps)			236.8(DL)/236.8(UL)	236.8(DL)/236.8(UL)
Software Features
Protocol		TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/Multi-PDP/ FTP/FTPS/HTTP/HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS
TLS		●	●	●
File System		●	●	●
Audio Record/Play		o	o	o
TTS		o	o	o
DTMF		o	o	o
LBS		●	●	●
FOTA		●	●	●
Jamming Detection		●	●	●
Android RIL		Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/7.0/8.0/9.0
USB Driver		Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android
WWAN (RNDIS)		●	●	●
ECM		●	●	●
MBIM		Win8/Win10	Win8/Win10	Win8/Win10
NDIS		Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10
Firmware Upgrade		USB/FOTA	USB/FOTA	USB/FOTA
Interfaces
SIM Card		1.8V/3.0V	1.8V/3.0V	1.8V/3.0V
UART		●	●	●
USB		●	●	●
PCM		o	o	o
ADC		●	●	●
SD Card		●	●	●
SPI		o	o	o
I2C		●	●	●
Diversity Receiver		●	●	●
Certification
Regulatory		FCC/PTCRB/RoHS/REACH/IC	CE-RED/ACMA/FCC/ RoHS/REACH/Anatel	CE-RED/RoHS/REACH/ IMDA/GCF
Carrier		AT&T/Rogers	Telstra	DTAG/Vodafone
