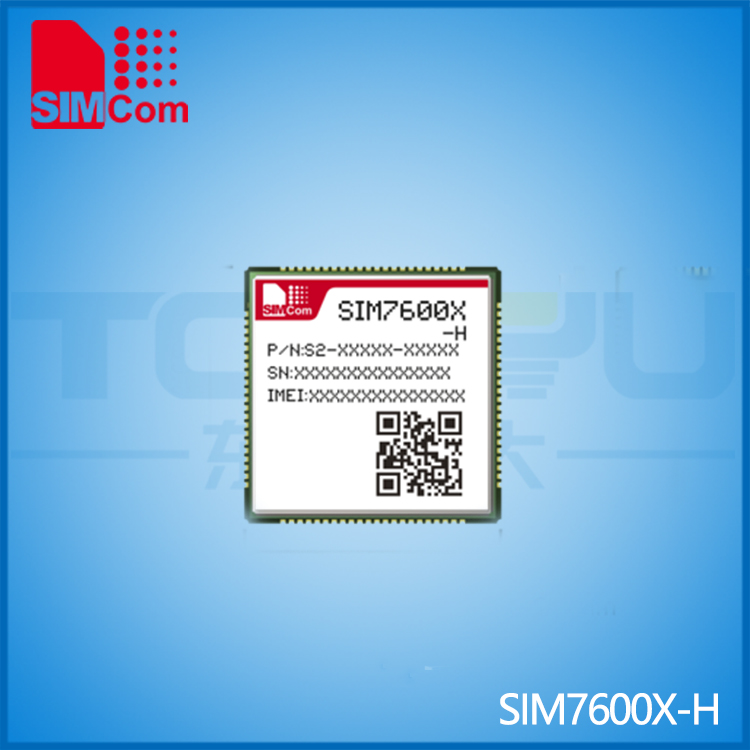

芯訊通 LTE模組 SIM7600X-H

品(pin)　牌(pai) 芯訊通（SIMCom）
類　別 LTE Cat4

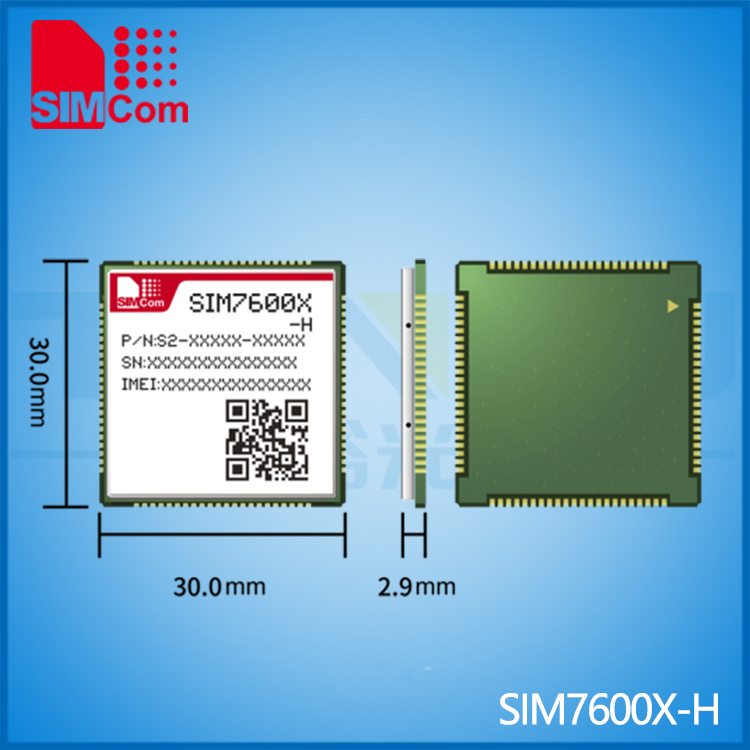

尺　寸(cun) 30.0*30.0*2.9
描　述 SIM7600-H系(xi)列(lie)集(ji)成多(duo)個衛星高精度(du)定(ding)位GNSS系(xi)統，內置多(duo)種網絡協議，支持主要(yao)操(cao)作系(xi)統的驅動程序(Windows、Linux、Android等(deng)USB驅動程序)和軟件功能(neng)，AT命令(ling)均與(yu)SIM7500/SIM7600系(xi)列(lie)模(mo)塊兼容。同時(shi)，SIM7600-H系(xi)列(lie)集(ji)成了主流工(gong)業標(biao)準接口，具(ju)有強大(da)的擴展(zhan)性，包括(kuo)豐富的UART、USB、12C、GPIO等(deng)接口，適用于(yu)車聯(lian)網監(jian)控設備(bei)、CPE、工(gong)業路由器(qi)、遠程診斷等(deng)主要(yao)物聯(lian)網應用。
18038161549
樣品申請
資源下載
產品詳情

產品(pin)優勢(shi)

具(ju)有豐富接口的CC1外形規格

-適用(yong)于(yu)覆蓋全球的LTE、UMTS和GSM網絡

豐富的軟(ruan)件功能:FOTALBSTLSVOLTE

多星(xing)座全球(qiu)導(dao)航衛星(xing)系統接收機支持

-SIM7600-H系(xi)(xi)列的AT命令與SIM7500/SIM7600系(xi)(xi)列模(mo)塊兼容

產品(pin)詳情

ProductSIM7600A-HSIM7600V-HSIM7600SA-HSIM7600JC-HSIM7600E-HSIM7600NA-HSIM7600G-H R2
Form FactorLCC, 87PINLCC, 87PINLCC, 87PINLCC, 87PINLCC, 87PINLCC+LGA, 119PINLCC+LGA, 119PIN
Dimensions(mm)30.0*30.0*2.930.0*30.0*2.930.0*30.0*2.930.0*30.0*2.930.0*30.0*2.930.0*30.0*2.930.0*30.0*2.9
Frequency BandsLTE-FDDB2/B4/B12B2/B4/B5/B13B1/B2/B3/B4/B5/B7/ B8/B28/B66B1/B3/B8/B18/B19/B26B1/B3/B5/B7/B8/B20B2/B4/B5/B12/B13/ B14/B25/B26/B66/B71B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/ B28/B66
LTE-TDD

B40
B38/B40/B41B41B34/B38/B39/ B40/B41
WCDMAB2/B5
B1/B2/B5/B8
B1/B5/B8
B1/B2/B4/B5/ B6/B8/B19
GSM

850/900/1800/1900MHz
900/1800MHz
850/900/1800/ 1900MHz
GNSSooooooo
Temperature GNSS-40℃ ~ +85℃ Optional-40℃ ~ +85℃ Optional
-40℃ ~ +85℃ Optional
-40℃ ~ +85℃ Optional
-40℃ ~ +85℃ Optional
-40℃ ~ +85℃ Optional
-40℃ ~ +85℃ Optional
Electrical Features


Supply Voltage(V)3.4~ 4.23.4~ 4.23.4~ 4.23.4~ 4.23.4~ 4.23.4~ 4.23.4~ 4.2
Power Consumption(mA)LTE2.32.32.32.32.32.32.3
WCDMA, DRX=93.3
3.3
3.3
3.3
GSM,BS_PA_MFRMS=2

2.8
2.8
2.8
Data Transfer


LTE(Mbps)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)
HSPA+(Mbps)42(DL)/5.76(UL)
42(DL)/5.76(UL)
42(DL)/5.76(UL)
42(DL)/5.76(UL)
WCDMA(Kbps)384(DL)/384(UL)
384(DL)/384(UL)
384(DL)/384(UL)
384(DL)/384(UL)
GPRS/EDGE(Kbps)

236.8(DL)/236.8(UL)
236.8(DL)/236.8(UL)
236.8(DL)/236.8(UL)
Software Features


ProtocolTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS
TLS●●●●●●●
File System●●●●●●●
Audio Record/Playooooooo
TTSooooooo
DTMFooooooo
LBS●●●●●●●
FOTA●●●●●●●
Jamming Detection●●●●●●●
Android RILAndroid 5.0/6.0/ 7.0/8.0/9.0Android 5.0/6.0/ 7.0/8.0/9.0Android 5.0/6.0/ 7.0/8.0/9.0Android 5.0/6.0/ 7.0/8.0/9.0Android 5.0/6.0/ 7.0/8.0/9.0Android 5.0/6.0/ 7.0/8.0/9.0Android 5.0/6.0/ 7.0/8.0/9.0
USB DriverMicrosoft Windows   7/8/10 Linux/AndroidMicrosoft Windows   7/8/10 Linux/AndroidMicrosoft Windows   7/8/10 Linux/AndroidMicrosoft Windows   7/8/10 Linux/AndroidMicrosoft Windows   7/8/10 Linux/AndroidMicrosoft Windows   7/8/10 Linux/AndroidMicrosoft Windows   7/8/10 Linux/Android
WWAN (RNDIS)●●●●●●●
ECM●●●●●●●
MBIMWin8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10
NDISLinux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows   7/8/10
Open Linuxooooooo
Firmware UpgradeUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTA
Interfaces


SIM Card1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V
UART●●●●●●●
USB●●●●●●●
PCMooooooo
ADC●●●●●●●
SD Card●●●●●●●
SPIooooooo
I2C●●●●●●●
Diversity Receiver●●●●●●●
Certification


RegulatoryFCC/PTCRB/IC/RoHS/ REACHFCC/GCF/RoHS/REACHCE-RED/ACMA/FCC/NCC/ RoHS/REACH/AnatelTelec/JATE/RoHS/REACHCE-RED/RoHS/REACH/ IMDA/GCFFCC/IC/PTCRB/GCF/ RoHS/REACHCE-RED/FCC/IC/RCM/CCC/ Telec/Jate/Anatel/NCC/IMDA*/ ICASA*/PTCRB/GCF/RoHS/ REACH
CarrierAT&TVerizon
Docomo/SoftbankDTAG/VodafoneAT&T*/Verizon*/T-mobile*/US Celluar*AT&T*/Verizon*/T-mobile*/US Celluar*/Telstra*
