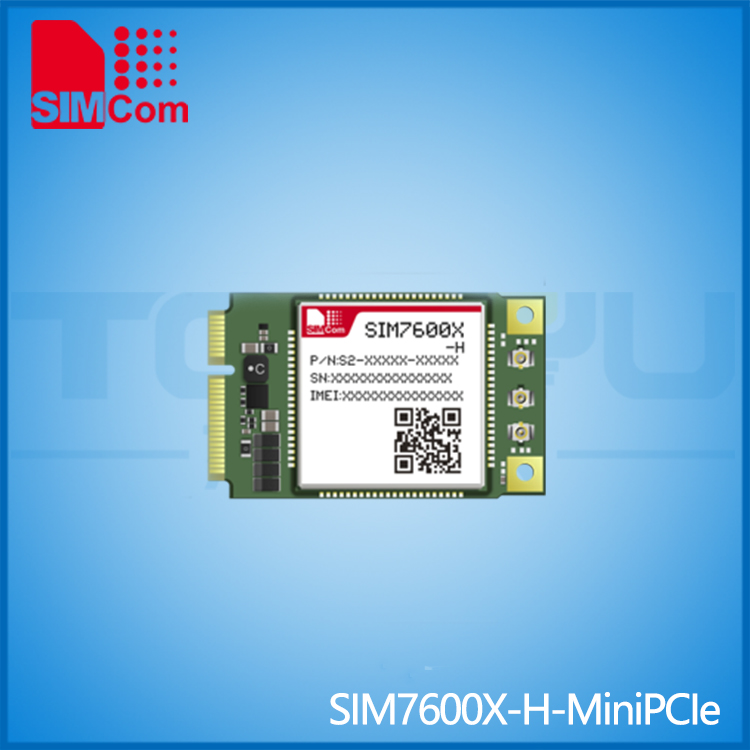

芯訊通 LTE模組 SIM7600X-H-MiniPCIe

品　牌芯訊通(tong)（SIMCom）

類　別 LTE Cat4

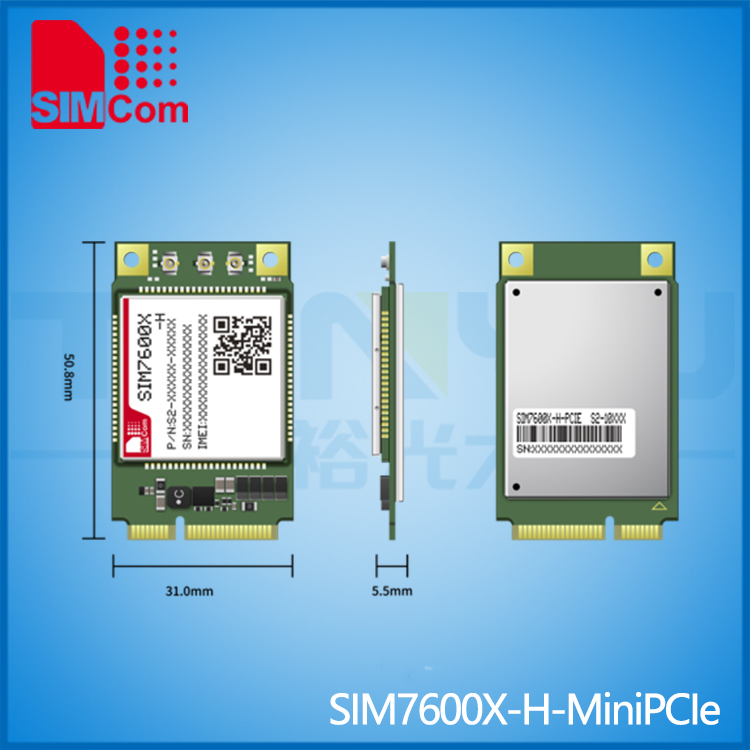

尺　寸 50.8*31*5.35

描　述 SIM7600-H-PCIE系列采用miniPCIE外形，由一個(ge)SIM7600-H系列模塊和一塊miniPCIE適配板組成(cheng)。這是很容(rong)易(yi)為客戶(hu)整合。 SIM7600-H-PCIE系列集成(cheng)多個(ge)衛星(xing)高精度(du)定位GNSS系統，內置(zhi)多種(zhong)網(wang)絡協議，支持主要(yao)操作系統驅動(Windows、LinuxAndroid等USB驅動)和軟件功能(neng)，AT命令均與(yu)SIM7500/SIM7600系列模塊兼容(rong)。

18038161549

樣品申請

資源下載

產品詳情

產品優勢

。Mini-PCIE接口，兼容性強(qiang)

。多(duo)星座全球導航衛星系統接收機支持

。適用于(yu)覆(fu)蓋(gai)全球的LTE、UMTS和GSM網絡

。豐富的軟件功能:FOTA,LBSTLSVOLTE

。SIM7600-H-PCIE系(xi)列的AT命令與(yu)SIM7500/SIM7600系(xi)列模塊兼容(rong)

產(chan)品詳情(qing)

Product		SIM7600A-H-PCIE	SIM7600V-H-PCIE	SIM7600SA-H-PCIE	SIM7600JC-H-PCIE	SIM7600E-H-PCIE	SIM7600NA-H-PCIE	SIM7600G-H-PCIE
Form Factor		Mini PCIE	Mini PCIE	Mini PCIE	Mini PCIE	Mini PCIE	Mini PCIE	Mini PCIE
Dimensions(mm)		50.8315.35	50.8315.35	50.8315.35	50.8315.35	50.8315.35	50.8315.35	50.8315.35
Frequency Bands	LTE-FDD	B2/B4/B12	B2/B4/B5/B13	B1/B2/B3/B4/B5/ B7/B8/B28/B66	B1/B3/B8/B18/B19/B26	B1/B3/B5/B7/B8/B20	B2/B4/B5/B12/B13/ B14/B25/ B26/B66/B71	B1/B2/B3/B4/B5/ B7/B8/B12/B13/ B18/B19/B20/B25/ B26/B28/B66
	LTE-TDD			B40		B38/B40/B41	B41	B34/B38/B39/ B40/B41
	WCDMA	B2/B5		B1/B2/B5/B8		1/B5/B8		B1/B2/B4/B5/ B6/B8/B19
	GSM			850/900/1800/1900MHz		900/1800MHz		850/900/1800/1900MHz
Temperature GNSS		-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional	-40℃ ~ +85℃ Optional
Electrical Features
Supply Voltage(V)		3.0~ 3.6	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6
Power Consumption(mA)	LTE	2.3	2.3	2.3	2.3	2.3	2.3	2.3
	WCDMA, DRX=9	3.3		3.3		3.3		3.3
	GSM,BS_PA_MFRMS=2			2.8		2.8		2.8
Data Transfer
LTE(Mbps)		150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)
HSPA+(Mbps)		42(DL)/5.76(UL)		42(DL)/5.76(UL)		42(DL)/5.76(UL)		42(DL)/5.76(UL)
WCDMA(Kbps)		384(DL)/384(UL)		384(DL)/384(UL)		384(DL)/384(UL)		384(DL)/384(UL)
GPRS/EDGE(Kbps)				236.8(DL)/236.8(UL)		236.8(DL)/236.8(UL)		236.8(DL)/236.8(UL)
Software Features
Protocol		TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS
TLS		●	●	●	●	●	●	●
File System		●	●	●	●	●	●	●
Audio Record/Play		o	o	o	o	o	o	o
TTS		o	o	o	o	o	o	o
DTMF		o	o	o	o	o	o	o
LBS		●	●	●	●	●	●	●
FOTA		●	●	●	●	●	●	●
Jamming Detection		●	●	●	●	●	●	●
Android RIL		Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0
USB Driver		Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android
WWAN (RNDIS)		●	●	●	●	●	●	●
ECM		●	●	●	●	●	●	●
MBIM		Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10
NDIS		Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10
Open Linux		o	o	o	o	o	o	o
Firmware Upgrade		USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA
Interfaces
SIM Card		1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V
UART		●	●	●	●	●	●	●
USB		●	●	●	●	●	●	●
PCM		o	o	o	o	o	o	o
Analog Audio		o	o	o	o	o	o	o
Embedded SIM card socket		o	o	o	o	o	o	o
Diversity Receiver		●	●	●	●	●	●	●
Certification
Regulatory		RoHS\REACH\FCC\PTCRB\IC	RoHS\REACH\FCC\GCF	RoHS\REACH\FCC\NCC\ACMA\CE(RED)\Anatel	RoHS\REACH\Telec\Jate	RoHS\REACH\CE(RED)\GCF\IMDA\DTAG	RoHS\REACH\FCC\IC\PTCRB\GCF	RoHS\REACH\CE(RED)\FCC\IC\RCM\CCC\Telec\Jate\Anatel\NCC
Carrier		AT&T	Verizon		Docomo/Softbank	Deutsche Telekom /Vodafone	AT&T/Verizon/ Sprint*/T-mobile	AT&T\Verizon\T-Mobile
