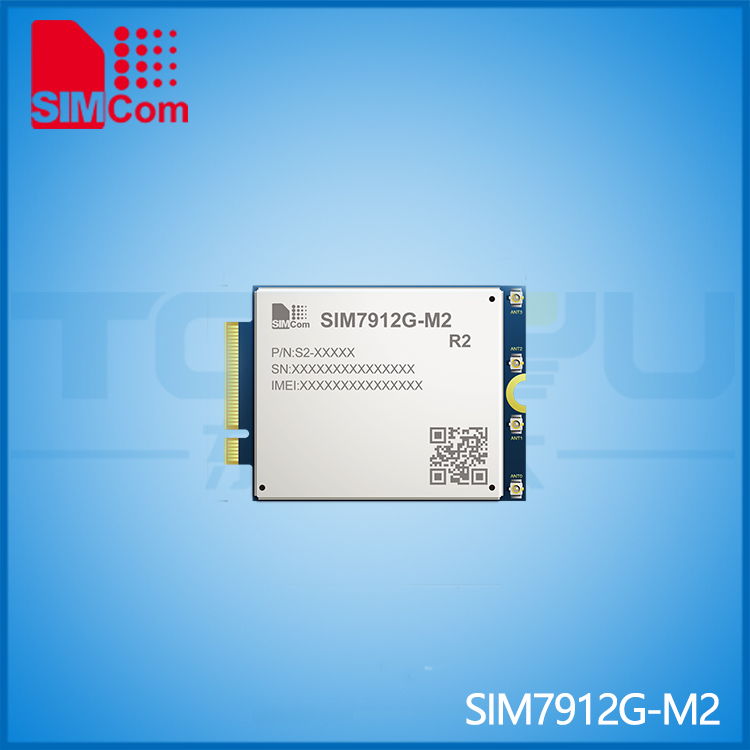

芯訊通 LTE-A模組 SIM7912G-M2

品　牌芯(xin)訊通(tong)（SIMCom）

類　別 LTE Cat12

尺　寸(cun) 42.0*30.0*2.3mm

描　述 SIM7912G-M2為M2型，3042-S3-B型。在命(ming)令處，SIM7912G-M2與SIM7500/SIM7600/SIM7906系列模(mo)塊兼容。這(zhe)也(ye)盡(jin)量減少了對客戶的投資并使其短(duan)期進入市場。 Ltis是專為需要高吞量數據通(tong)信(xin)的各種無線電(dian)傳播應(ying)用而(er)設計的條件由于獨特的組合性(xing)能;securityandflexibility;thismoduleisideallysuitedfor許多應(ying)用程序。

18038161549

樣品申請

資(zi)源(yuan)下載

產品(pin)詳情(qing)

產(chan)品優勢

-標準M.2接口

-高吞吐(tu)量的數據通信。

-SIM7912G-M2的AT指令主要與(yu)SIM7500/SIM7600/SIM7906系列模塊(kuai)兼容。

產(chan)品(pin)詳情

General Features

? Supply voltage range: 3.135V~ 4.4V; Typ: 3.7V
? Control Via AT Commands
? Operation temperature: -30℃ to +70℃

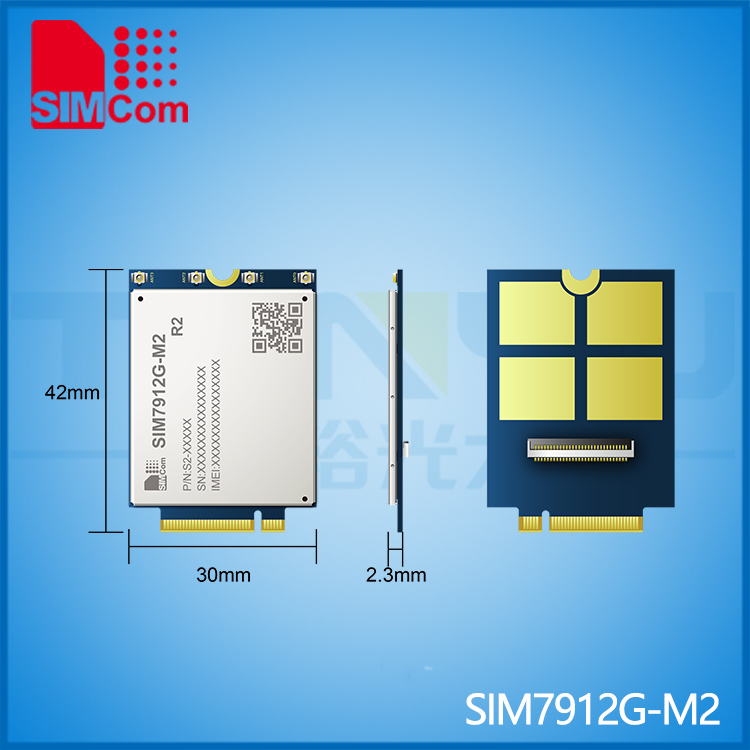

? Dimensions: 42.0*30.0*2.3mm
? Weight: 6.1g
? LTE-TDD/LTE-FDD/WCDMA
? Support DL 3XCA
? GNSS (GPS;GLONASS and BeiDou)

Data

? Uplink up to 50Mbps

? Downlink up to 600Mbps

Certification

? RoHS\REACH\JATE\

Telec\RCM

Other Features

? USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
? USB Driver for Linux /Android
? RIL supporting for Android 2.3/4.0/5.0/6.0/7.0*
? MBIM to Win8
? Firmware update via USB

? FOTA*
? TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
? SSL3.0/TLS1.0/TLS1.2* (* under development)

Interfaces

? USB3.0 x1 (high-speed)
? USB2.0 x1 (high-speed)
? UART x1 (4-wire UART )
? SIM card x1 (1.8V and 3V)
? PCIE x1
? PCM x1
? I2C x1
? GPIO x1
? Antenna x3

Frequency

LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66
LTE-TDD	B38/B39/B40/B41
DL2XCA	B1+3/5/18/19/20/26;B2+2/4/5/12/13/17/29/30/66;B3+3/5/7/8/19/20/28;B4+4/5/12/13/1 7/29/30;B5+7/30/66;B7+7/20/28;B12+30;B13+66;B20+B32;B29+30;B38+38;B39+39; B39+41;B40+40;B41+41;B66+66/12/29/30/5;(Note: B29; B32 is only for secondary component carrier)
DL3XCA	DL inter-band 3CA:B1+3+5/8/19/20/28;B1+7+20;B2+4+5;B2+4+13; B2+5+30;B2+12+30;B2+29+30 ;B3+7+20; B3+7+28 ; B3+7+8;B4+5+30; B4+12+30; B4+29+30 ; B5+66+2; B13+66+2;B66+12+30;B66+29+30;B66+5+30;DL 2 intra-band plus inter-band 3CA:B2+2+5; B2+2+13 ;B3+3+7; B3+7+7; B3+3+20 ;B3+3+28;B3+3+1;B4+4+5; B4+4+13; B7+7+28;B5+66+66; B13+66+66; B66+66+2;B39+B39+B41; B39+B41+B41;DL 3 intra-band 3CA:B40+40+40; B41+41+41; B66+66+66
WCDMA	B1/B2/B3/B4/B5/B8/B9/B19
