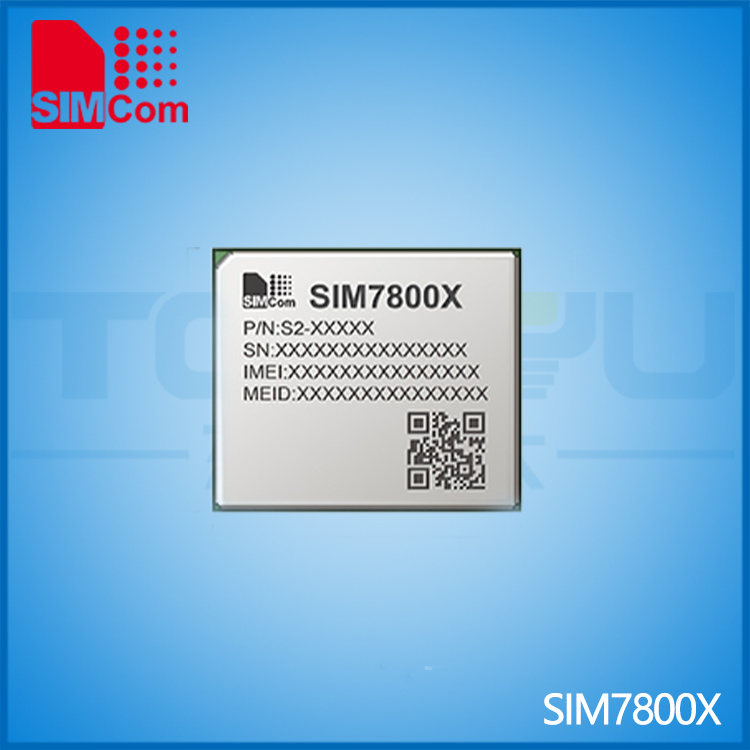

芯訊通車規級模組 SIM7800X

品　牌芯訊(xun)通（SIMCom）

類　別 LTE

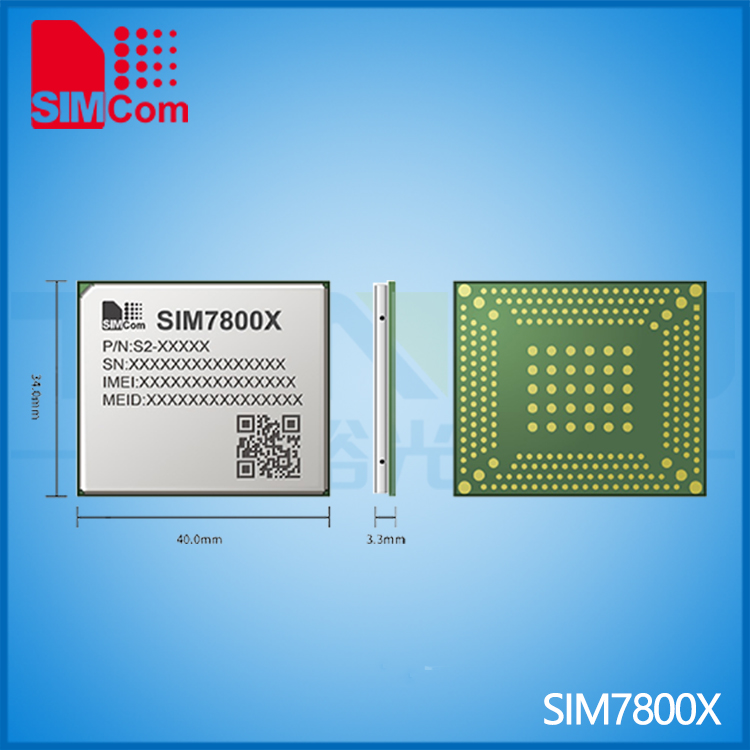

尺　寸 34.0*40.0*3.1

描(miao)　述 SIM7800系(xi)(xi)列(lie)是(shi)多頻(pin)段LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO和(he)雙頻(pin)段GSM/GPRS/EDGE汽車級LTECat4模塊，支持最大150Mbps下行速(su)率(lv)和(he)50Mbps上行速(su)率(lv)。 SIM7800系(xi)(xi)列(lie)采(cai)用(yong)LGA外形，非常適合(he)集成在汽車設(she)(she)備中。 SIM7800系(xi)(xi)列(lie)是(shi)根(gen)據(ju)laTF16949設(she)(she)計(ji)和(he)制造的:2016質量管理體系(xi)(xi)它的目標是(shi)loV(車聯網(wang))市場。

18038161549

樣品申請

資源下(xia)載

產品詳情

產(chan)品(pin)優(you)勢(shi)

一(yi)具有豐富(fu)接口的LGA外形規(gui)格(ge)

一符合(he)汽(qi)車質量管理體系laTF16949:2016

一出色的EMC保護確(que)保即使在(zai)惡劣的環(huan)境中也具(ju)有強大(da)的魯棒性

一緊湊型LGA外形尺寸，非常適合(he)集(ji)成在(zai)汽(qi)車設(she)備中

一多(duo)星座(zuo)導航衛星系(xi)統接收機

一豐富的(de)接口和應(ying)用能(neng)力，為客戶的(de)應(ying)用提供(gong)了極大的(de)靈活性(xing)和易于集成(cheng)性(xing)

產品詳情(qing)

Product		SIM7800CE	SIM7800E
Form factor		LGA, 282 PIN	LGA, 282 PIN
Dimensions(mm)		34.040.03.1	34.040.03.1
Frequency Bands	LTE-FDD	B1/B3/B5/B8	B1/B3/B5/B7/B8/B20
	LTE-TDD	B38/B39/B40/B41	B38/B40/B41
	WCDMA	B1/B8	B1/B5/B8
	TD-SCDMA	B34/B39
	EVDO/CDMA	BC0
	GSM	900/1800 MHz	900/1800 MHz
GNSS		●	●
Temperature		-40℃ ~ +85℃	-40℃ ~ +85℃
Electrical Features
Supply Voltage(V)		3.3~ 4.2	3.3~ 4.2
Power Consumption(mA)	LTE-FDD	1.8	1.8
	WCDMA, DRX=9	3.3	3.3
	GSM,BS_PA_MFRMS=2	1.8	1.8
Data Transfer
LTE(Mbps)		150 (DL)/50(UL)	150 (DL)/50(UL)
HSPA+(Mbps)		42(DL)/5.76(UL)	42(DL)/5.76(UL)
WCDMA(Kbps)		384(DL)/384(UL)	384(DL)/384(UL)
GPRS/EDGE(Kbps)		236.8(DL)/236.8(UL)	236.8(DL)/236.8(UL)
Software Features
Protocol		TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/ HTTPS/DNS/NTP/PING/SSL	TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS/NTP/PING/SSL
eCall		●	●
TLS		●	●
File System		●	●
Audio Record/Play		●	●
TTS		●	●
DTMF		●	●
LBS		●	●
FOTA		●	●
Jamming Detection		●	●
Security		SELinux/Trustzone/Secure boot	SELinux/Trustzone/Secure boot
Android RIL		Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/7.0/8.0/9.0
USB Driver		Microsoft Windows 7/8/10/Linux/Android	Microsoft Windows 7/8/10/Linux/Android
WWAN (RNDIS)/ECM		●	●
MBIM		Win8/Win10	Win8/Win10
NDIS		Linux/Windows 7/8/10	Linux/Windows 7/8/10
Open Linux		●	●
Firmware Upgrade		USB/FOTA	USB/FOTA
Wi-Fi/BT		2.4G/5G/BLE4.2(with W59)	2.4G/5G/BLE4.2(with W59)
Interfaces
SIM Card		1.8V/3.0V	1.8V/3.0V
UART		3*UART	3*UART
USB		●	●
HSIC		●	●
I2S		●	●
ADC		●	●
SDIO		SDIO3.0(200MHz Max)	SDIO3.0(200MHz Max)
SD Card		SD3.0(128G Max)	SD3.0(128G Max)
SPI		●	●
I2C		●	●
SGMII		10M/100M/1000M Ethernet	10M/100M/1000M Ethernet
Diversity Receiver		●	●
Certification
Regulatory		3C/SRRC/NAL/RoHS/REACH*	3C/SRRC/NAL/RoHS/REACH*
