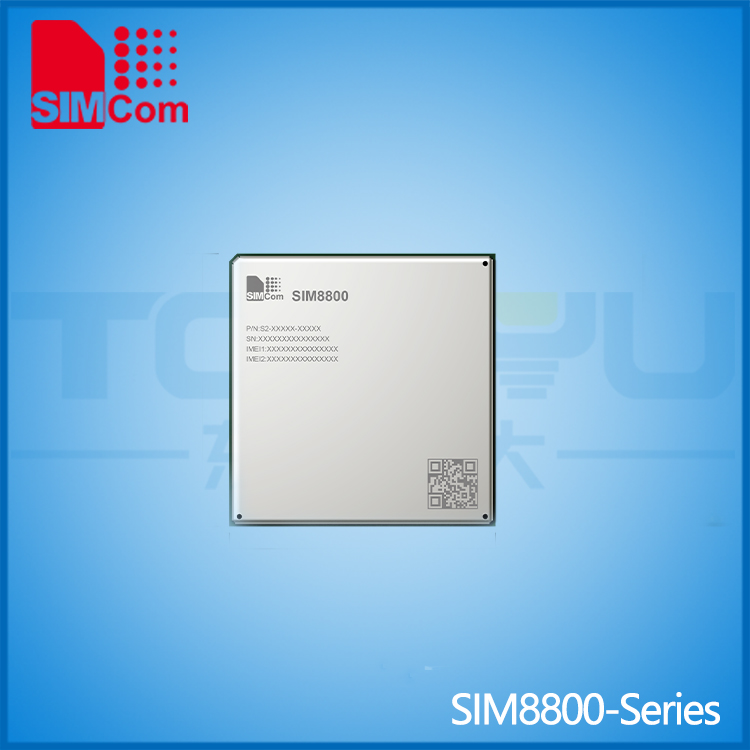

芯訊通車規級模組 SIM8800-Series

品　牌芯訊通（SIMCom）

類　別 C-V2X

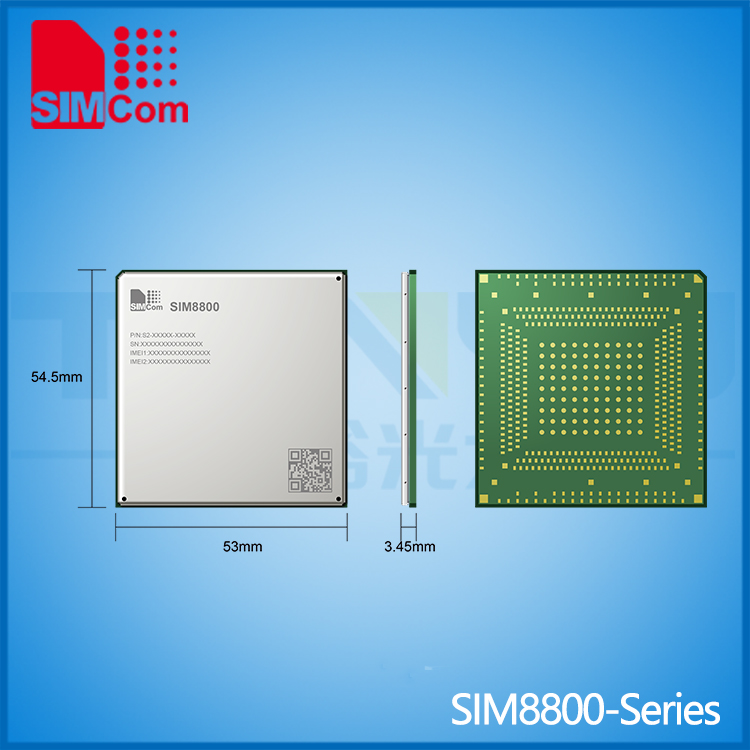

尺　寸 54.5*53.0*3.45

描　述(shu) SIM8800系列模塊采用(yong)LGA外形(xing)，AT指(zhi)念與(yu)SIM8200系列模塊兼容。這(zhe)也將客戶的投資降到最(zui)低，并(bing)能(neng)在短(duan)時間(jian)內上(shang)市它是專為與(yu)laATF 16949要(yao)求汽(qi)車應用(yong)，并(bing)提(ti)供性(xing)能(neng)，安全性(xing)和(he)靈活(huo)性(xing)的汽(qi)車應用(yong)的獨特組(zu)合。

18038161549

樣品申請

資源(yuan)下載

產品詳情(qing)

產品優勢

LGA外形尺寸和豐富的接口

符合(he)汽車(che)質(zhi)量管理體系IATF16949:2016

出色的(de)EMC保護確(que)保即使(shi)在惡劣的(de)環(huan)境(jing)中(zhong)也能保持出色的(de)穩(wen)健性(xing)

緊湊的LGA外形，非(fei)常適合集成在汽車(che)設備(bei)中

5G+CV2X基調

多星座導航衛星系統接收機(ji)

豐富的接口和應用能力，為(wei)客(ke)戶的應用提供了極(ji)大的靈(ling)活性和易于集成性

產品(pin)詳情

Product		SIM8800CE	SIM8800E
Form factor		LGA, 524 PIN	LGA, 524 PIN
Dimensions(mm)		54.553.03.45	54.553.03.45
Frequency Bands	5G NR	n1/n3/n28/n41/n78/n79	n1/n3/n8/n20/n28/n41/n78/n79
	LTE-FDD	B1/B3/B5/B7/B8	B1/B3/B5/B7/B8/B20/B28/B32
	LTE-TDD	B34/B38/B39/B40/B41	B38/B40/B41/B42
	WCDMA	B1/B8 B1/B3/B5/B6/B8
	GSM	900/1800MHz	900/1800 MHz
GNSS		●	●
Temperature		-40℃ ~ +85℃	-40℃ ~ +85℃
Electrical Features
Supply Voltage(V)		3.3V ~ 4.3V	3.3V ~ 4.3V
Power Consumption(mA)	5G NR	TBD	TBD
	LTE-FDD	TBD	TBD
	LTE TDD	TBD	TBD
	WCDMA, DRX=9	TBD	TBD
	GSM,BS_PA_MFRMS=2	TBD	TBD
Data Transfer
5G NR(Mbps)		2400(DL)/900(UL)	2400(DL)/900(UL)
LTE(Mbps)		1000 (DL)/200(UL)	1000 (DL)/200(UL)
HSPA+(Mbps)		42(DL)/5.76(UL)	42(DL)/5.76(UL)
WCDMA(Kbps)		384(DL)/384(UL)	384(DL)/384(UL)
GPRS/EDGE(Kbps)		236.8(DL)/236.8(UL)	236.8(DL)/236.8(UL)
Software Features
Protocol		TCP/ UDP/ PPP/ PING/ FTP(S)/ HTTP(S)/ SMTP/ SSL/ TLS/ MMS/ NTP/ FILE/ QMI	TCP/ UDP/ PPP/ PING/ FTP(S)/ HTTP(S)/ SMTP/ SSL/ TLS/ MMS/ NTP/ FILE/ QMI
eCall		●	●
TLS		●	●
File System		●	●
Audio Record/Play		●	●
TTS		●	●
DTMF		●	●
LBS		●	●
FOTA		●	●
Jamming Detection		●	●
Security		Trust Zone/ Secure Boot/ SE-Linux	Trust Zone/ Secure Boot/ SE-Linux
Android RIL		Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/7.0/8.0/9.0
USB Driver		Windows 7/8/8.1/10, Linux 2.6~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x	Windows 7/8/8.1/10, Linux 2.6~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x
WWAN (RNDIS)/ECM		●	●
MBIM		Win8/Win10	Win8/Win10
NDIS		Linux/Windows 7/8/10	Linux/Windows 7/8/10
Open Linux		●	●
Firmware Upgrade		USB/FOTA	USB/FOTA
Wi-Fi/BT		2.4G/5G/BLE5.2	2.4G/5G/BLE5.2
Interfaces
SIM Card		1.8V/3.0V	1.8V/3.0V
UART		3*UART	3*UART
USB		1* USB 3.1/2.0	1* USB 3.1/2.0
PCIe		●	●
PCM		●	●
I2S		●	●
ADC		*2	*2
SDIO		SDIO3.0(200MHz Max)	SDIO3.0(200MHz Max)
SPI		●	●
I2C		●	●
RGMII		●	●
Diversity Receiver		●	●
Certification
Regulatory		3C/SRRC/NAL/RoHS/REACH*	CE-RED/RoHS/REACH*
