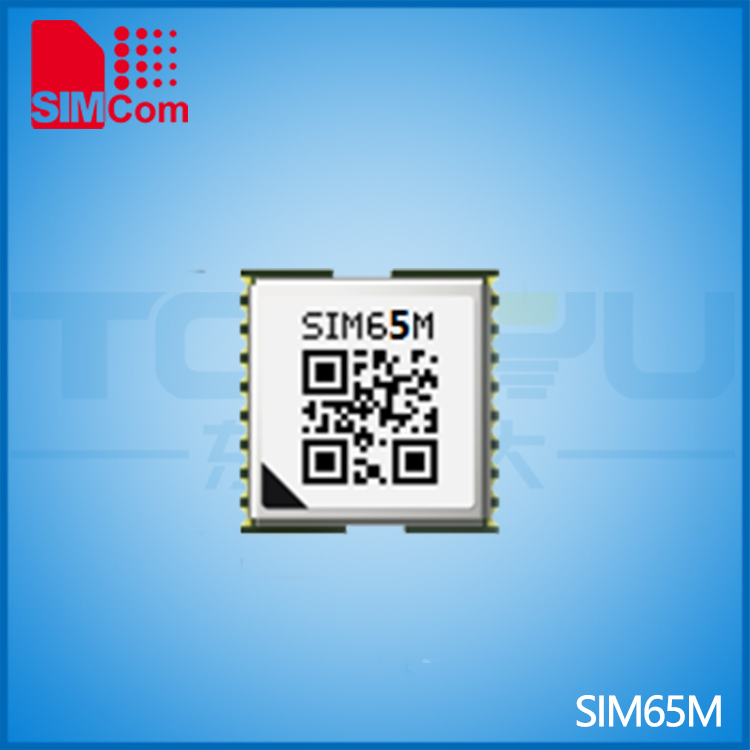

芯訊通 GNSS模組 SIM65M

品　牌(pai) 芯(xin)訊通（SIMCom）

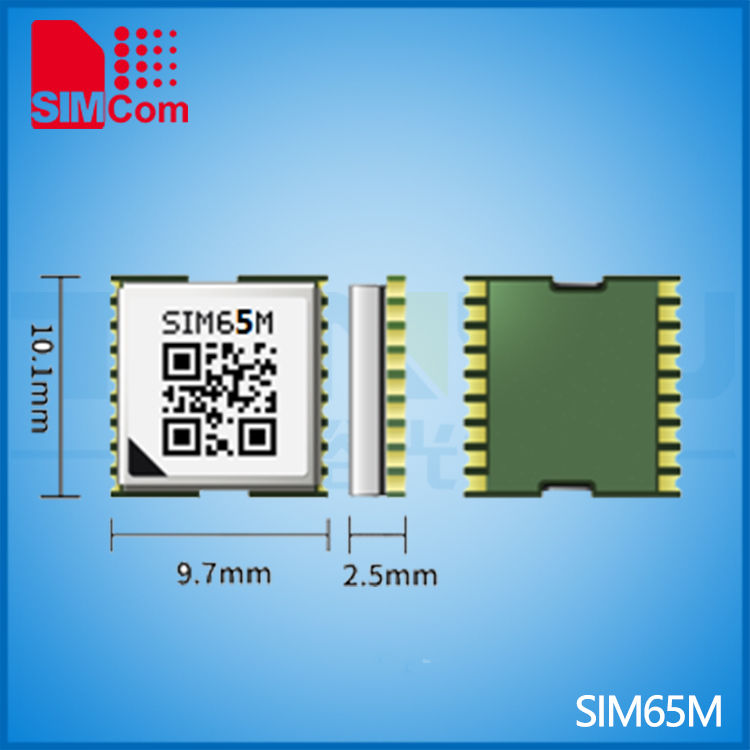

尺(chi)　寸 10.1*9.7*2.5mm
描　述(shu) SIM65M同時提供GPS、GLONASS、BDS、Galileo和OZSS開放業(ye)務L1接(jie)收(shou)能力。SIM65M擁有(you)47個GNSS接(jie)收(shou)器通道，可以捕獲和跟蹤任何混合的(de)多個衛星(xing)信號。結合先進的(de)AGPSEASYTM(嵌入式輔助系(xi)統)和成熟的(de)AlwaysLocateT技術，SIM65M實現了最高的(de)性能，完全(quan)符合工業(ye)標準。
18038161549
樣品申請
資源下載
產品(pin)詳情(qing)

產品優勢

● Support EASYTM self-generated orbit prediction

● Support EPOTM orbit prediction

● Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)

● Support Jamming Removing

● Low-noise amplifier has been integrated

產品詳情

Mechanical data

Dimensions

10.1*9.7*2.5mm

Weight 0.5g
Features
Support GPS/GLONASS/BDS/Galileo/QZSS(L1 Band Receiver 1575.42MHz)
Support EASYTM self-generated orbit prediction
Support EPOTM orbit prediction
Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
Support Jamming Removing
Low-noise amplifier has been integrated
Certifications
CE(PLAN)
RoHS/REACH(PLAN)
Performance data

Receiver type 47channels

GNSS receiver

Max. update rate 10Hz
Sensitivity1：
Tracking -166dBm
Reacquisition -158dBm
Cold starts -147dBm
Time-To-First Fix2：
Cold starts 30s
Warm start 25s
Hot starts 1s
EPO Assist 15s
Hot starts 1s
Accuracy：
Automatic Position3 2M
Speed4 0.1m/s

Operation temperature5

-40℃~+85 ℃

Electrical data
Power supply 2.8V~4.3V
Backup power 2.3V~4.6V
Power consumption2,6
Acquisition 18mA
Tracking 18mA
Sleep current 210uA
Backup 20uA
Antenna type Active and passive

Antenna power External or internal

VCC_RF

Interfaces
Serial interfaces UART

Digital I/O Pulse-per-second (PPS) EINT0

input   Protocols NMEA RTCM
