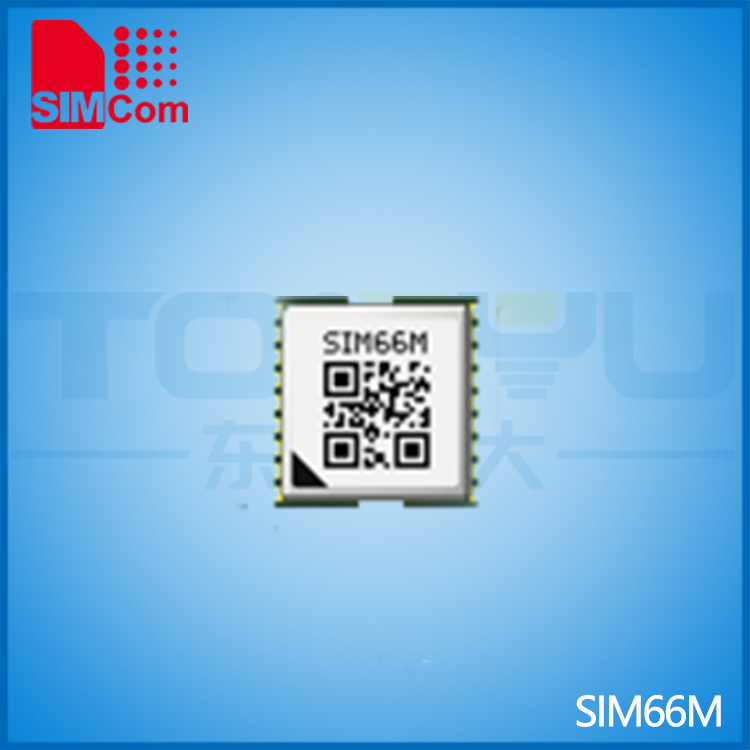

芯訊通 GNSS模組 SIM66M

品　牌 芯訊通（SIMCom）

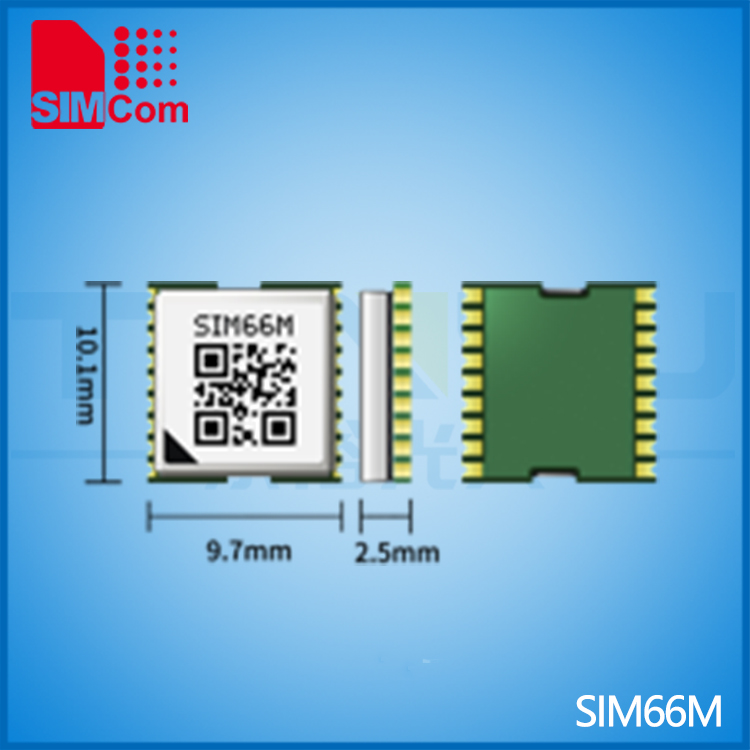

尺　寸(cun) 10.1*9.7*2.5mm
描　述 SIM66M同時(shi)提供GPS、GLONASS、Galileo和(he)QZSS開放業(ye)(ye)務(wu)L1接收能力。SLM66M擁有(you)46個(ge)(ge)跟(gen)蹤信(xin)道(dao)和(he)64個(ge)(ge)捕獲(huo)信(xin)道(dao)，可以獲(huo)取(qu)和(he)跟(gen)蹤多個(ge)(ge)衛星信(xin)號的任意組合。結合先進的AGNSSSIM66M達到了(le)最高(gao)的性能，完全符合工業(ye)(ye)標準
18038161549
樣品申請
資源下載
產(chan)品詳情(qing)

產品(pin)優勢

Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)

Support AGNSS

Low-noise amplifier has been integrated

產品詳情(qing)

Mechanical data

? Dimensions : 10.1*9.7*2.5mm

? Weight : 0.51g±0.01g

Features

? Support GPS/GLONASS/Galileo*
(L1 Band Receiver 1575.42MHz)

? Support SBAS ranging
(WAAS, EGNOS, GAGAN, MSAS)

? Support AGNSS

? Low-noise amplifier has been integrated

Note

1. Demonstrated in lab

2. All SV @ –130 dBm , GPS&GLONASS mode
3. 50% 24 hr static, -130dBm , GPS&GLONASS mode
4. 50%@ 30m/s
5. When at -40°C~ -30°C, the sensitivity will be somewhat worse

6. @3.6V with a passive antenna


Performance data

? Receiver type :
46tracking/64 acquisition-
channel GNSS receiver

? Max. update rate : 1Hz

? Sensitivity1

Tracking : -160dBm

Reacquisition : -158dBm

Cold starts : -147dBm

? Time-To-First Fix2

Cold starts : 29s
Hot starts :<2s

? Accuracy

Automatic Position3 : <2.5m CEP
Speed? :0.1m/s

? Operation temperature5 : -40℃~+85 ℃

Interfaces

? Serial interfaces

UART

? Digital I/O

PPS

EINT0

? Protocols

NEMA

Electrical data

? Power supply : 3.2V~4.0V

? Backup power : 1.4V~3.6V

? Power consumption2.6 :
Acquisition : 27mA
Tracking : 28mA
Backup : 78uA

? Antenna type : Active and passive

? Antenna power : External or internal VCC_RF

Certifications

? CE*

? RoHS/REACH
