芯訊通 GNSS模組 SIM66MB

品(pin)　牌 芯(xin)訊通（SIMCom）
尺　寸 10.1*9.7*2.5mm
描(miao)　述 SIM66MB是一款(kuan)高性能、可靠(kao)的GNSS模(mo)塊。它是一個與(yu)GPS和北斗系(xi)統集成的LCC類型的GNSS模(mo)塊，采用(yong)unicorecomm的高靈(ling)敏(min)度導(dao)航引擎(qing)，使(shi)客戶能夠以(yi)更低的功耗實現(xian)業界(jie)高水平的靈(ling)敏(min)度、精(jing)度和首次定位時間(jian)(TTFF)。
18038161549
樣品申請
資源下載
產品(pin)詳情

產品優勢

- Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)

- Support Jamming Removing

- Low-noise amplifier has been integrated

產品詳(xiang)情

Mechanical data

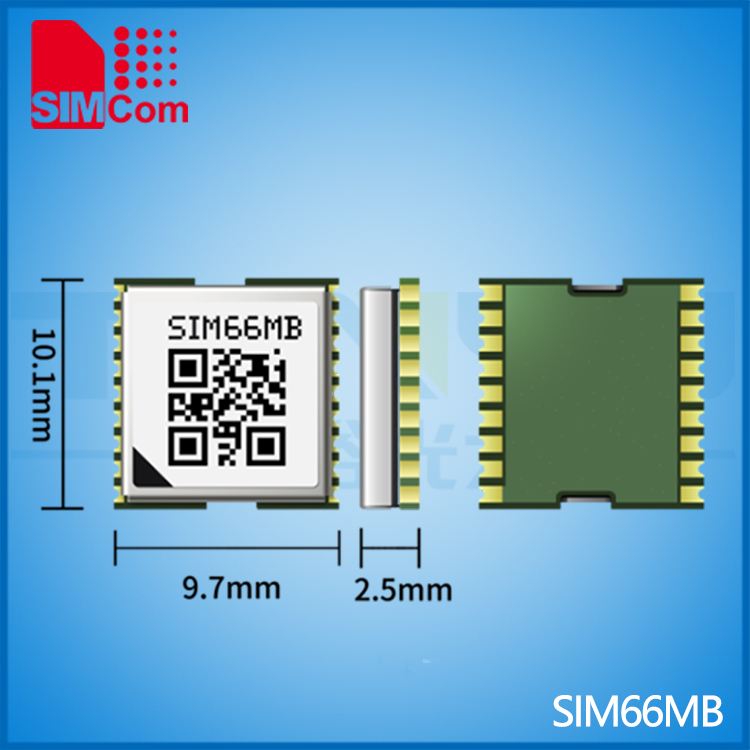

?Dimensions : 10.1*9.7*2.5mm
?Weight : 0.46g±0.01g
Features
Support GPS/BeiDou
(L1 Band Receiver 1575.42MHz)
Support SBAS ranging
(WAAS, EGNOS, GAGAN, MSAS)
Support Jamming Removing
Low-noise amplifier has been integrated
Certifications
? TBD
Performance data

Receiver type：46tracking/

64 acquisition-channel GNSS receiver

Max. update rate：1Hz
Sensitivity1：
Tracking：-160dBm
Reacquisition：-153dBm
Cold starts：-147dBm
Time-To-First Fix2：
Cold starts：29s
Hot starts：<2s
Accuracy：
Automatic Position3：<2.5m CEP
Speed?：0.1m/s

Operation temperature5：

-40℃~+85 ℃

Interfaces
Serial interfaces：UART
Digital I/O：BLK input
Protocols：NEMA
Electrical data
Power supply：1.7V~1.9V
Backup Power：1.4V~3.6V
Power consumption2,6：
Acquisition：53mA
Tracking：28mA
Backup：45uA
Antenna type：Active and passive
Antenna power：External or internal VCC_RF
