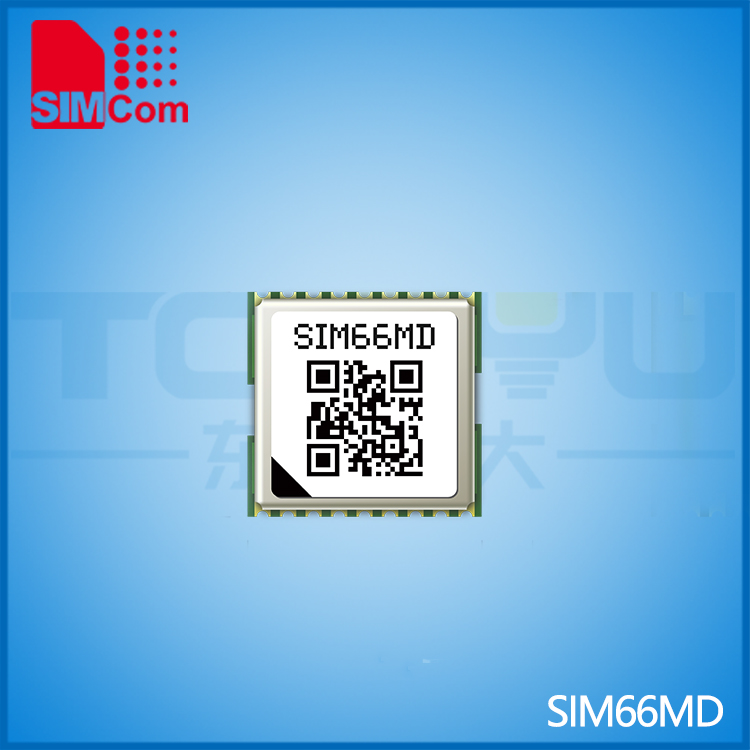

芯訊通 GNSS模組 SIM66MD

品　牌 芯訊通（SIMCom）
尺　寸 10.1*9.7*2.4mm
描　述 SIM66MD是(shi)一款高(gao)性能(neng)、可靠的(de)(de)GNSS模塊。它是(shi)LCC中(zhong)的(de)(de)獨立L1+L5雙頻段GNSS模塊，使(shi)客戶能(neng)夠以更低的(de)(de)功耗實現業(ye)界(jie)高(gao)水平的(de)(de)靈(ling)敏度、精(jing)度和(he)首次定(ding)位時間( TTFF) SIM66MD提供(gong)同步(bu)GPS、GLONASS、北斗、伽(jia)利略(lve)OZSS開放業(ye)務L1接(jie)收能(neng)力(li)和(he)GPS北斗、伽(jia)利略(lve)、OZSS和(he)NAVIC開放業(ye)務L5接(jie)收能(neng)力(li)。SIM66MD可以采集和(he)跟蹤多個衛星信號(hao)的(de)(de)任意組合，獲得了(le)最高(gao)的(de)(de)性能(neng)，完全符合工業(ye)標準。
18038161549
樣品申請
資源下載
產品詳情

產品優勢(shi)

● L1 and L5 dual-band GNSS receiver

● Support AGNSS

● Low-noise amplifier has been integrated

● Support RTK *

產品詳情

Mechanical data

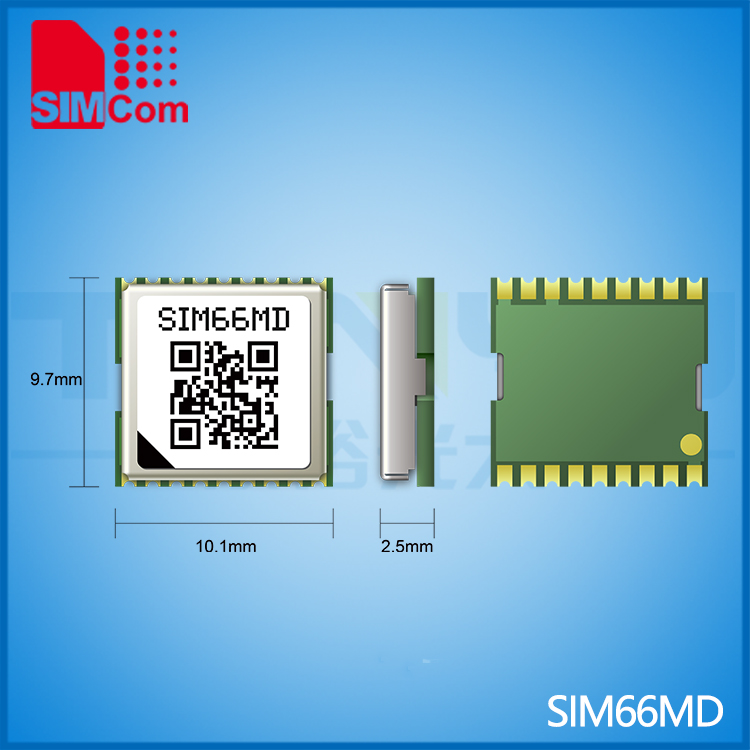

Dimensions

10.1*9.7*2.4mm

Weight 0.5g
Features
Support L1:
BeiDou/GPS/GLONASS/Galileo/QZSS
L5: BeiDou/GPS/Galileo/QZSS/NAVIC*
Support AGNSS
Support PPS
Low-noise amplifier has been integrated
Support DGPS (RTCM)/RTK*
Indoor and outdoor multi-path detection and compensation
Certifications（plan）
CE
RoHS/Reach
Performance data
Receiver type L1: 75SVs L5: 60SVs
Max. update rate 10Hz
Sensitivity:
Tracking -165dBm
Reacquisition -155dBm
Cold starts -148dBm
Time-To-First Fix:
Cold starts 24s
Warm start 19s
Hot starts <1s
Accuracy
Sensitivity
Automatic Position 0.5M
Speed4 0.01m/s
Operation temperature -40℃~+85 ℃
Electrical data
Power supply 1.7V~3.6V
Power consumption:
Acquisition 25mA
Tracking 25mA
Sleep current TBD
Software RTC current TBD
Antenna type Active and passive
Antenna power External or internal VCC_RF
Interfaces
Serial interfaces
UART
SPI
I2C
Digital I/O
Pulse-per-second (PPS)
EINT0 input
Protocols NMEA
RTCM*
