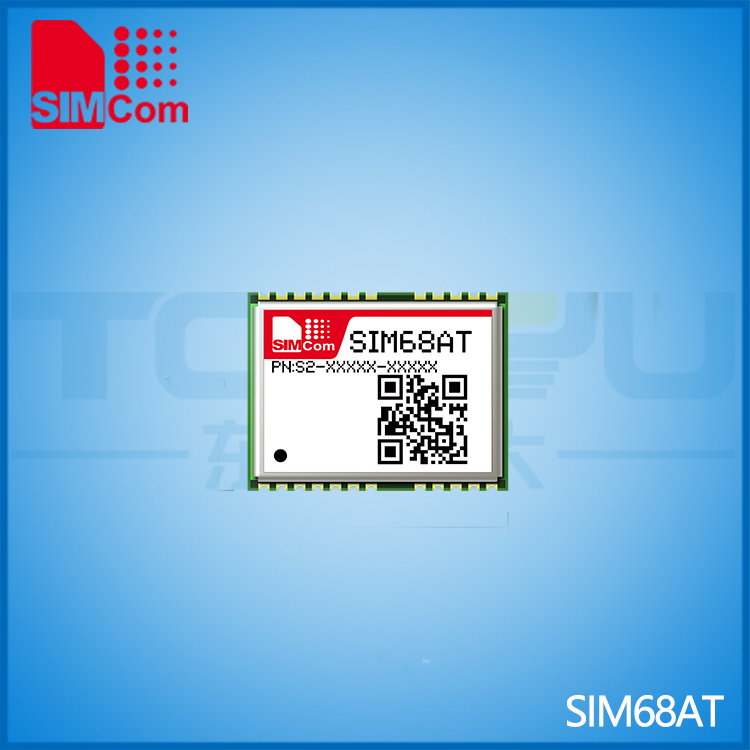

芯訊通 GNSS模組 SIM68AT

品　牌 芯訊通（SIMCom）
尺　寸 16*12.2*2.4mm
描　述 SIM68AT提(ti)供同步GPS、GLONASS、北斗(dou)、伽(jia)利略和(he)(he)OZsS開(kai)放服務L1接(jie)收能(neng)力以及GPS、北斗(dou)、伽(jia)利略和(he)(he)OZSS開(kai)放服務L5接(jie)收能(neng)力。SIM68AT可以獲取和(he)(he)跟蹤多個衛星信號的任何組合(he)(he)。將先進的AGPS稱(cheng)為EASYTM(嵌入式輔助系統)與經過驗證的AlwaysLocate“技術相結合(he)(he)，SIM68AT達到了最(zui)高的性能(neng)，完(wan)全(quan)符合(he)(he)工業標準(zhun)
18038161549
樣品申請
資源下載
產品詳情

產品優勢

L1 and L5 dual-band GNSS receiver

Support EASYTM self-generated orbit prediction

Support EPOTM orbit prediction

Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)

Support Jamming Removing

Support DR*/RTK*

Low-noise amplifier has been integrated

產品詳情

Mechanical data

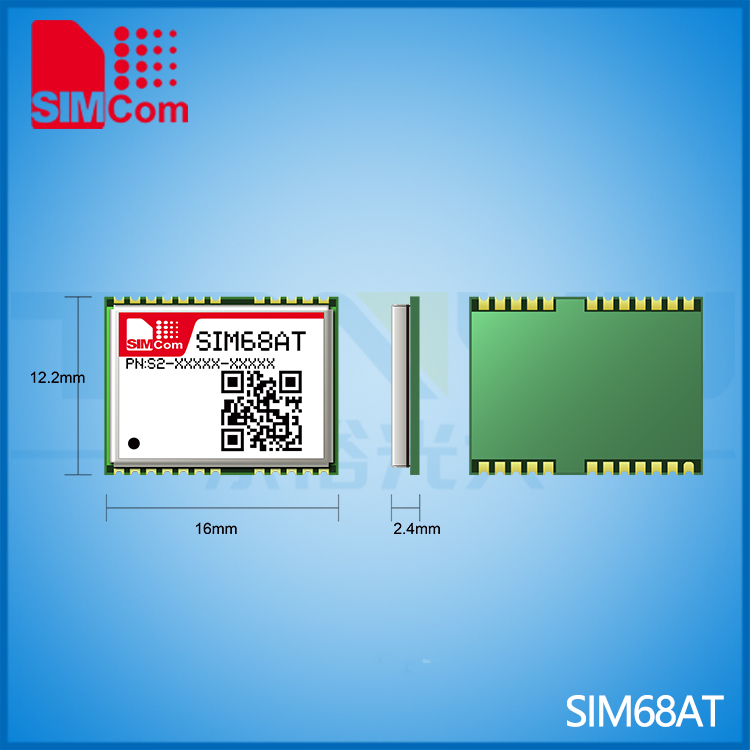

Dimensions 16*12.2*2.4mm
Weight 1g
Features
Support L1:
BeiDou/GPS/GLONASS/Galileo/QZSS
L5:BeiDou/GPS/Galileo/QZSS
Support EASYTM self-generated orbit prediction
Support EPOTM orbit prediction
Support SBAS ranging
(WAAS, EGNOS, GAGAN, MSAS)
Support Jamming Removing
Low-noise amplifier has been integrated
Support DGPS (RTCM)/RTK*/DR*
Indoor and outdoor multi-path detection and compensation
LOCUSTM logger function
Certifications（plan）
TBD
Performance data
Receiver type
L1: 75SVs
L5: 60SVs
Max. update rate 10Hz
Sensitivity:
Tracking -166dBm
Reacquisition -160dBm
Cold starts -148dBm
Time-To-First Fix:
Cold starts 27s
Warm start 25s
Hot starts <1s
EPO Assist 13s
Accuracy
Automatic Position 1.5M
Speed4 0.01m/s
Operation temperature -40℃~+85 ℃
Electrical data
Power supply 2.8V~4.3V
Backup power 2.3V~4.6V
Power consumption:
Acquisition 23.3mA
Tracking 23.9mA
Sleep current 340uA
Backup 78uA
Antenna type Active and passive
Antenna power External or internal VCC_RF
Interfaces
Serial interfaces
UART
SPI
I2C
Digital I/O
Pulse-per-second (PPS)
EINT0 input
Protocols
NMEA
RTCM*
