產品優勢(shi)
? L1 and L5 dual-band GNSS receiver
? Support EASYTM self-generated orbit prediction
? Support EPOTM orbit prediction
? Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
? Support Jamming Removing
? Low-noise amplifier has been integrated
產品詳情

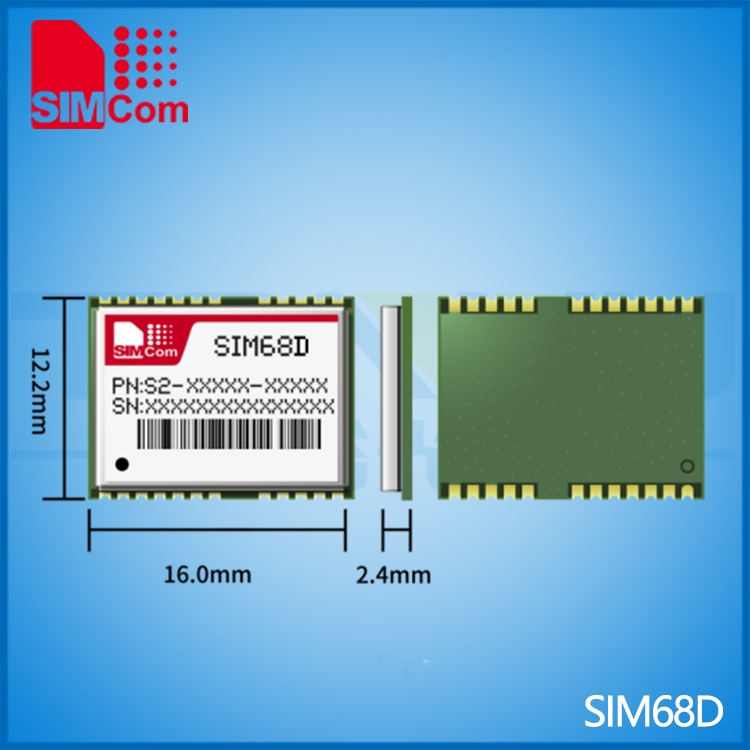

Mechanical data ?Dimensions : 16*12.2*2.4mm ?Weight : 1g
Features ? Support L1: BeiDou/GPS/GLONASS/Galileo/QZSSL5: BeiDou/GPS/Galileo/QZSS ? Support EASY? self-generated orbit prediction ? Support EPO? orbit prediction ? Support SBAS ranging ? Support Jamming Removing ? Low-noise amplifier has been integrated ? Support DGPS (RTCM) ? Indoor and outdoor multi-path detection and compensation ? LOCUSTM logger function 1. Demonstrated in lab 6. @3.3V with a passive antenna | Performance data ? Receiver type : L1: 75SVs ? Max. update rate : 10Hz ? Sensitivity1 Tracking : -166dBm Reacquisition : -160dBm Cold starts : -148dBm ? Time-To-First Fix2 Cold starts : 27s ? Accuracy Automatic Position3 : 1.5M ? Operation temperature: -40℃~+85 ℃
| Interfaces ? Serial interfaces UART SPI I2C ? Digital I/O Pulse-per-second (PPS) EINT0 input ? Protocols NEMA PMTK
Electrical data ? Power supply : 2.8V~4.3V ? Backup power : 2.3V~4.6V ? Power consumption : 23.3mA 23.9mA 340uA ? Antenna type : Active and passive ? Antenna power : External or internal VCC_RF
Certifications ? TBD |
