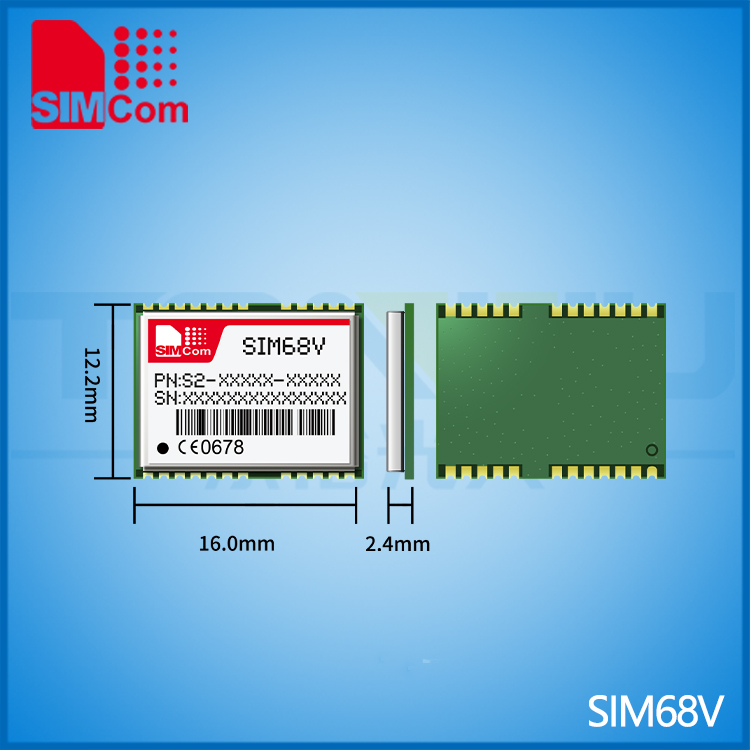

Mechanical data ?Dimensions: 16*12.2*2.4mm ?Weight: 1g Features ?Support GPS/GLONASS/Galileo ?Support EASYTM self-generated orbit prediction ?Support EPOTM orbit prediction ?Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS) ?Support DGPS (RTCM) ?Support Jamming Removing ?Low-noise amplifier has been integrated Interfaces ?Serial interfaces UART, SPI / I2C ?Digital I/O EINT0 input Pulse-per-second (PPS) ?Protocols NMEA PMTK Support product ?SIM68 EVB KIT with USB V2.0 full speed interface | Approvals ? RoHS\REACH\CE(RED) Performance data ?Receiver type 33tracking/99 acquisitionchannel GNSS receiver ?Max. update rate 10Hz ?Sensitivity1 Tracking:-167 dBm Reacquisition:-160 dBm Cold starts:-148 dBm ?Time-To-First-Fix2 Cold starts:28 s Warm start:26 s Hot starts:<1s EPO Assist:13s(CTTFF) ? Accuracy Automatic Position3:<2.5m CEP Speed4:0.1m/s ?Operation temperature5: -40℃~+85 ℃ | Electrical data ?Power supply 2.8V~4.3V ?Backup power 2.3V~4.6V ?Power consumption2,6 Acquisition 34mA Tracking 30mA AlwaysLocateTM 340uA Backup 14uA ?Antenna type Active and passive ?Antenna power External or internal VCC_RF |
