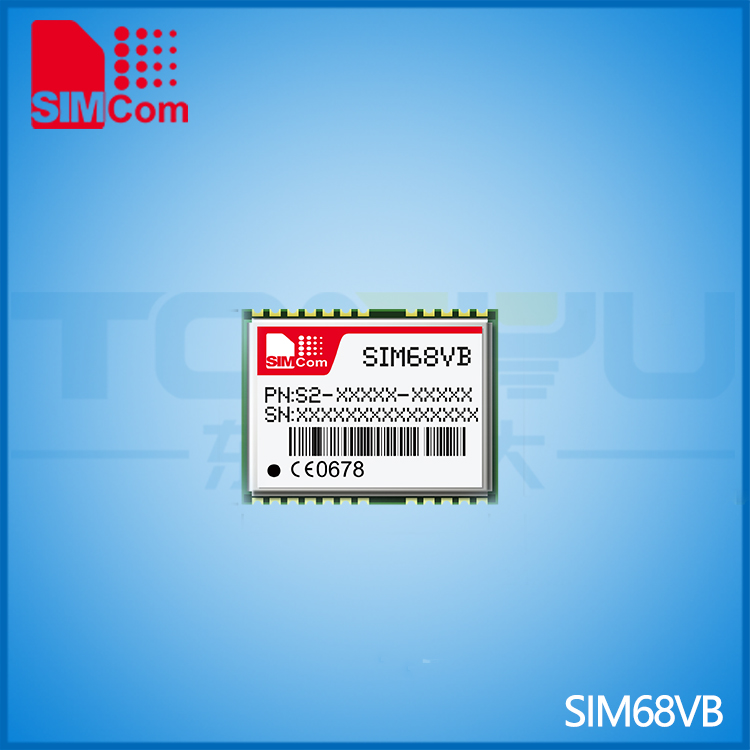

芯訊通 GNSS模組 SIM68VB

品　牌 芯訊通（SIMCom）
尺　寸 16*12.2*2.4mm
描　述(shu) SIMCom推出了一款(kuan)高(gao)性(xing)能(neng)、可靠的GNSS模塊SIM68VB。這是(shi)一個(ge)具有MTK“S高(gao)靈(ling)敏度導(dao)航引擎的SMT型獨立GPSL1頻率和BD2GNSS模塊，使用戶能(neng)夠以較(jiao)低的功耗(hao)實現(xian)業界的S高(gao)靈(ling)敏度、高(gao)精度和時間到優先的定位(wei)(TTFF)。
18038161549
樣品申請
資源下載
產品詳(xiang)情

產品詳(xiang)情

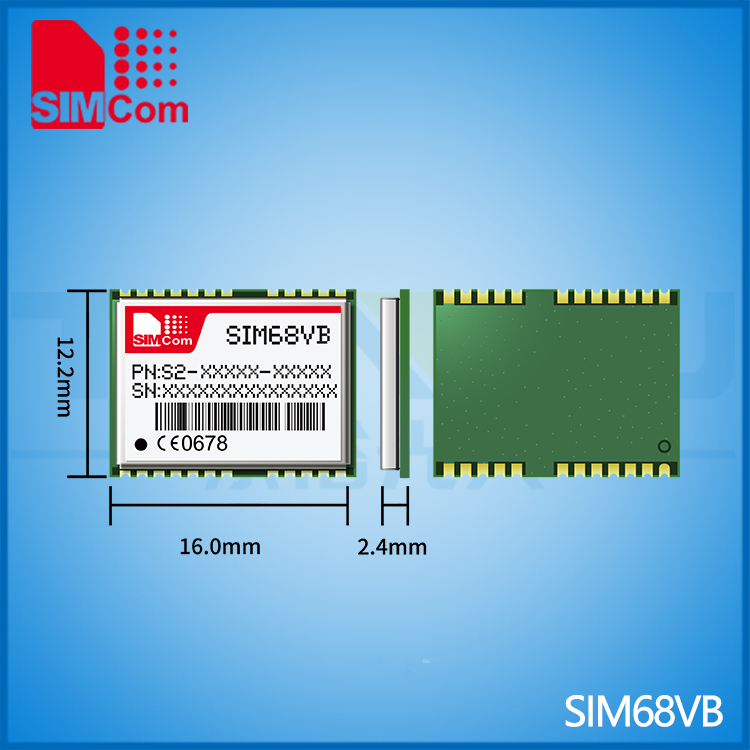

Mechanical data
?Dimensions: 16*12.2*2.4mm
?Weight: 1g
Features
?Support GPS/BD2
?Support EASYTM self-generated orbit prediction
?Support EPOTM orbit prediction
?Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)
?Support DGPS (RTCM)
?Support Jamming Removing
?Low-noise amplifier has been integrated
Interfaces
?Serial interfaces UART, SPI / I2C
?Digital I/O EINT0 input
Pulse-per-second (PPS)
?Protocols NMEA
PMTK
PSIM
Support product
?SIM68 EVB KIT with USB V2.0 full speed interface
Performance data
?Receiver type

33tracking/99 acquisitionchannel

GNSS receiver

?Max. update rate 10Hz
?Sensitivity1
Tracking:167 dBm
Reacquisition:-160 dBm
Cold starts:-148 dBm
?Time-To-First-Fix2
Cold starts:28 s
Warm start:26 s
Hot starts:<1s
EPO Assist:13s（CTTFF)
? Accuracy

Automatic Position3: <2.5m CEP

Speed4:0.1m/s

?Operation temperature5:

   -40℃~+85 ℃

Electrical data
?Power supply: 2.8V~4.3V
?Backup power: 2.3V~4.6V
?Power consumption2,6
Acquisition: 34mA
Tracking: 30mA
AlwaysLocateTM: 340uA
Backup: 14uA
?Antenna type Active and passive

?Antenna power External or interna

   VCC_RF

Approvals
? RoHS\REACH
